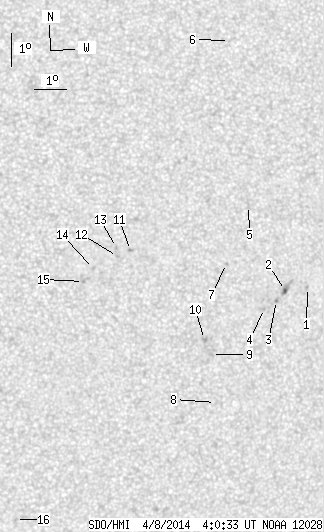

SDO HMI 2014-04-08 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.79 | 28.20 | 2.01 | 14.83 | -8.73 | 8.76 | 19.39 | 260.80 | 0.3359 | 127.9 | 316.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.71 | -8.36 | 11.90 | 22.52 | 262.93 | 0.3835 | 801.0 | 575.9 | |
| 0.97 | 6.96 | 0.52 | 3.71 | -8.48 | 11.18 | 21.81 | 262.47 | 0.3723 | 990.7 | 804.3 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -8.79 | 10.91 | 21.53 | 261.56 | 0.3683 | 866.0 | 764.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -9.04 | 10.53 | 21.16 | 260.76 | 0.3627 | 751.0 | 642.8 | |
| 2.82 | 3.00 | 1.49 | 1.58 | -5.97 | 9.86 | 20.49 | 269.34 | 0.3497 | -1.8 | -2.6 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -1.04 | 9.15 | 19.78 | 283.69 | 0.3497 | 8.0 | 13.7 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -7.74 | 9.23 | 19.86 | 264.16 | 0.3398 | 775.0 | 684.5 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -11.93 | 9.13 | 19.76 | 252.04 | 0.3492 | 11.0 | 5.8 | |
| 0.00 | 2.11 | 0.00 | 1.11 | -10.49 | 8.90 | 19.53 | 255.98 | 0.3402 | 687.0 | 491.6 | |
| 0.00 | 2.91 | 0.00 | 1.53 | -10.04 | 8.64 | 19.27 | 257.14 | 0.3348 | 954.0 | 724.5 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -7.45 | 6.15 | 16.78 | 264.51 | 0.2889 | -960.0 | -767.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -7.64 | 5.75 | 16.38 | 263.74 | 0.2824 | -770.0 | -574.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -7.37 | 5.71 | 16.33 | 264.69 | 0.2814 | -751.0 | -695.4 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -8.02 | 5.01 | 15.63 | 262.12 | 0.2706 | -851.0 | -718.6 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -8.42 | 4.71 | 15.33 | 260.51 | 0.2664 | -831.0 | -657.7 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -15.65 | 2.94 | 13.56 | 233.30 | 0.2829 | 845.0 | 622.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
