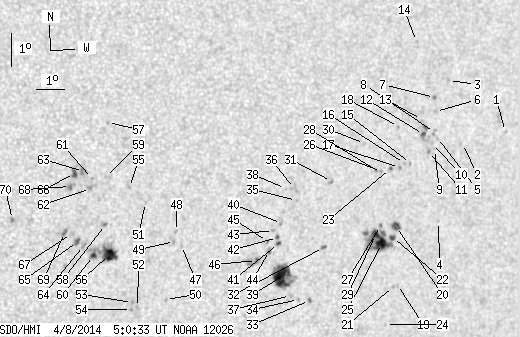

SDO HMI 2014-04-08 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.85 | 235.91 | 40.43 | 140.29 | -11.05 | 22.18 | 33.36 | 258.89 | 0.5508 | -16.3 | 43.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.99 | -7.60 | 30.52 | 41.70 | 265.43 | 0.6637 | 531.0 | 444.6 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -8.08 | 28.85 | 40.02 | 264.71 | 0.6417 | 460.0 | 470.8 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -6.23 | 28.11 | 39.28 | 267.65 | 0.6322 | 585.0 | 396.4 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -10.48 | 28.22 | 39.39 | 260.92 | 0.6343 | 531.0 | 438.3 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -7.96 | 27.85 | 39.02 | 264.89 | 0.6283 | 468.0 | 374.0 | |
| 0.00 | 1.76 | 0.00 | 1.12 | -7.19 | 27.69 | 38.86 | 266.13 | 0.6262 | 630.0 | 519.1 | |
| 0.00 | 1.85 | 0.00 | 1.17 | -6.78 | 27.61 | 38.79 | 266.80 | 0.6253 | 702.0 | 592.2 | |
| 0.00 | 2.38 | 0.00 | 1.51 | -7.82 | 27.72 | 38.89 | 265.12 | 0.6265 | 714.0 | 583.1 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -8.33 | 27.77 | 38.95 | 264.31 | 0.6274 | 393.0 | 288.3 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -8.16 | 27.68 | 38.85 | 264.58 | 0.6260 | 453.0 | 407.0 | |
| 0.00 | 1.76 | 0.00 | 1.12 | -8.41 | 27.55 | 38.72 | 264.18 | 0.6243 | 761.0 | 649.7 | |
| 1.23 | 7.23 | 0.78 | 4.56 | -7.91 | 27.30 | 38.47 | 264.98 | 0.6209 | 829.2 | 717.7 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -7.47 | 27.17 | 38.35 | 265.70 | 0.6192 | 527.0 | 529.9 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -5.14 | 26.78 | 37.96 | 269.50 | 0.6149 | 657.0 | 531.1 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -8.81 | 26.90 | 38.07 | 263.51 | 0.6156 | 642.0 | 520.5 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -8.83 | 26.67 | 37.84 | 263.47 | 0.6124 | 657.0 | 537.2 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -8.96 | 26.49 | 37.67 | 263.25 | 0.6101 | 618.0 | 586.1 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -7.73 | 26.32 | 37.49 | 265.27 | 0.6074 | 599.0 | 473.6 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -12.47 | 26.93 | 38.10 | 257.57 | 0.6192 | 444.0 | 478.3 | |
| 4.05 | 6.34 | 2.54 | 3.97 | -10.73 | 26.61 | 37.79 | 260.35 | 0.6129 | 813.3 | 598.5 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -12.54 | 26.78 | 37.96 | 257.44 | 0.6174 | 673.0 | 509.9 | |
| 1.67 | 46.09 | 1.05 | 28.60 | -11.07 | 26.51 | 37.68 | 259.78 | 0.6118 | 683.6 | 657.4 | |
| 0.53 | 1.67 | 0.33 | 1.04 | -9.01 | 26.15 | 37.33 | 263.15 | 0.6054 | 744.5 | 564.8 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -13.70 | 26.68 | 37.85 | 255.54 | 0.6179 | 506.0 | 508.5 | |
| 11.28 | -22.00 | 7.01 | -22.00 | -11.28 | 26.11 | 37.29 | 259.39 | 0.6067 | 965.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -9.12 | 25.82 | 37.00 | 262.95 | 0.6009 | 715.0 | 571.5 | |
| 0.00 | 1.41 | 0.00 | 0.88 | -10.74 | 26.00 | 37.17 | 260.27 | 0.6045 | 691.0 | 593.9 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -9.10 | 25.63 | 36.80 | 262.97 | 0.5982 | 728.0 | 616.8 | |
| 4.41 | -22.00 | 2.73 | -22.00 | -11.02 | 25.84 | 37.02 | 259.78 | 0.6027 | 1055.9 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.92 | -8.32 | 25.09 | 36.26 | 264.26 | 0.5904 | 602.0 | 507.4 | |
| 0.00 | 1.67 | 0.00 | 1.01 | -9.53 | 23.98 | 35.16 | 262.11 | 0.5755 | 709.0 | 613.1 | |
| 0.70 | 2.11 | 0.43 | 1.28 | -11.53 | 23.94 | 35.12 | 258.63 | 0.5771 | 747.1 | 611.1 | |
| 0.44 | 1.85 | 0.27 | 1.12 | -13.16 | 23.66 | 34.84 | 255.77 | 0.5761 | 829.0 | 700.1 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -13.15 | 23.25 | 34.42 | 255.68 | 0.5703 | 857.0 | 726.3 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -10.18 | 22.76 | 33.94 | 260.83 | 0.5588 | 684.0 | 625.7 | |
| 0.00 | 4.76 | 0.00 | 2.83 | -9.82 | 22.65 | 33.82 | 261.46 | 0.5567 | 789.0 | 652.6 | |
| 0.00 | 1.59 | 0.00 | 0.95 | -13.05 | 22.93 | 34.11 | 255.78 | 0.5657 | 112.0 | 104.8 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -9.84 | 22.32 | 33.49 | 261.39 | 0.5521 | 472.0 | 658.8 | |
| 23.62 | 38.69 | 14.08 | 23.09 | -12.49 | 22.52 | 33.69 | 256.65 | 0.5588 | -897.4 | -348.9 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -10.90 | 22.30 | 33.47 | 259.47 | 0.5530 | -638.0 | -519.2 | |
| 0.97 | 2.03 | 0.58 | 1.20 | -11.51 | 22.27 | 33.44 | 258.37 | 0.5535 | -767.4 | -678.1 | |
| 0.62 | 1.94 | 0.37 | 1.15 | -11.33 | 22.21 | 33.38 | 258.68 | 0.5524 | -501.4 | -396.8 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -11.13 | 22.03 | 33.21 | 259.01 | 0.5496 | 653.0 | 589.9 | |
| 0.00 | 2.73 | 0.00 | 1.62 | -11.74 | 21.97 | 33.14 | 257.89 | 0.5496 | 82.0 | -83.6 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -11.47 | 21.86 | 33.03 | 258.35 | 0.5476 | 610.0 | 551.0 | |
| 0.79 | 8.20 | 0.47 | 4.82 | -12.06 | 21.54 | 32.71 | 257.20 | 0.5441 | 902.9 | 144.3 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -11.76 | 18.80 | 29.97 | 257.09 | 0.5038 | -583.0 | -490.3 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -11.34 | 18.57 | 29.75 | 257.84 | 0.4997 | -601.0 | -483.4 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -11.65 | 18.54 | 29.71 | 257.23 | 0.4998 | -643.0 | -584.3 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -13.41 | 18.44 | 29.61 | 253.71 | 0.5028 | -350.0 | -388.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -10.53 | 17.40 | 28.57 | 259.21 | 0.4807 | -627.0 | -516.0 | |
| 0.00 | 1.76 | 0.00 | 1.00 | -13.70 | 17.49 | 28.66 | 252.76 | 0.4899 | -870.0 | -650.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -13.56 | 17.29 | 28.47 | 252.96 | 0.4866 | -735.0 | -676.2 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -13.77 | 17.29 | 28.46 | 252.53 | 0.4872 | -847.0 | -712.0 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -10.10 | 16.80 | 27.98 | 259.97 | 0.4710 | -655.0 | -526.2 | |
| 12.25 | 29.34 | 6.86 | 16.40 | -12.15 | 16.32 | 27.50 | 255.49 | 0.4681 | -964.6 | -711.4 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -8.19 | 15.89 | 27.06 | 263.96 | 0.4547 | -594.0 | -547.0 | |
| 0.00 | 1.67 | 0.00 | 0.93 | -11.25 | 16.09 | 27.26 | 257.32 | 0.4624 | -813.0 | -703.3 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -9.81 | 15.95 | 27.13 | 260.41 | 0.4575 | -608.0 | -512.4 | |
| 2.11 | -56.00 | 1.18 | -56.00 | -12.21 | 15.77 | 26.95 | 255.16 | 0.4601 | -959.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -9.89 | 15.51 | 26.69 | 260.13 | 0.4510 | -708.0 | -582.4 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -10.20 | 15.47 | 26.65 | 259.45 | 0.4509 | -788.0 | -704.5 | |
| 0.00 | 4.85 | 0.00 | 2.68 | -9.70 | 15.19 | 26.36 | 260.49 | 0.4457 | -775.0 | -730.4 | |
| 0.00 | 2.82 | 0.00 | 1.57 | -11.92 | 15.40 | 26.57 | 255.64 | 0.4537 | -969.0 | -689.9 | |
| 1.15 | 3.44 | 0.63 | 1.90 | -11.81 | 15.18 | 26.36 | 255.80 | 0.4501 | -1000.0 | -853.0 | |
| 2.03 | 4.14 | 1.12 | 2.28 | -9.77 | 14.89 | 26.06 | 260.26 | 0.4412 | -1023.0 | -809.0 | |
| 0.00 | 2.73 | 0.00 | 1.51 | -11.58 | 14.95 | 26.13 | 256.22 | 0.4460 | -326.0 | -437.0 | |
| 0.00 | 4.76 | 0.00 | 2.62 | -10.17 | 14.79 | 25.96 | 259.34 | 0.4403 | -995.0 | -790.3 | |
| 0.00 | 3.08 | 0.00 | 1.70 | -11.56 | 14.71 | 25.89 | 256.18 | 0.4423 | -1005.0 | -857.1 | |
| 0.00 | 2.20 | 0.00 | 1.20 | -11.24 | 12.92 | 24.10 | 256.20 | 0.4141 | -977.0 | -815.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
