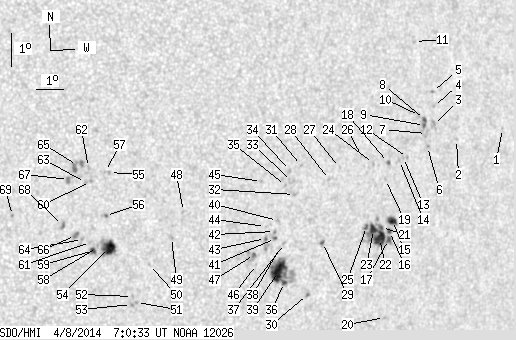

SDO HMI 2014-04-08 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.33 | 239.84 | 39.14 | 145.16 | -11.02 | 22.58 | 34.85 | 259.23 | 0.5719 | -22.0 | 45.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.42 | -7.66 | 30.63 | 42.89 | 265.32 | 0.6792 | 608.0 | 533.9 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -8.12 | 28.80 | 41.07 | 264.64 | 0.6555 | 548.0 | 473.7 | |
| 0.00 | 5.46 | 0.00 | 3.52 | -7.76 | 27.84 | 40.11 | 265.20 | 0.6428 | 645.0 | 485.5 | |
| 0.00 | 1.23 | 0.00 | 0.80 | -7.19 | 27.77 | 40.04 | 266.09 | 0.6421 | 640.0 | 572.8 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -6.75 | 27.69 | 39.96 | 266.79 | 0.6411 | 734.0 | 670.4 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -8.41 | 27.67 | 39.94 | 264.19 | 0.6407 | 631.0 | 621.1 | |
| 0.00 | 3.17 | 0.00 | 2.04 | -8.02 | 27.59 | 39.86 | 264.79 | 0.6395 | 717.0 | 626.7 | |
| 0.88 | 5.55 | 0.57 | 3.56 | -7.61 | 27.46 | 39.73 | 265.44 | 0.6379 | 827.5 | 747.0 | |
| 0.88 | -8.00 | 0.57 | -8.00 | -7.79 | 27.48 | 39.75 | 265.16 | 0.6381 | 884.6 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.35 | -7.50 | 27.25 | 39.52 | 265.61 | 0.6351 | 673.0 | 531.5 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -5.30 | 26.86 | 39.13 | 269.13 | 0.6307 | 631.0 | 505.1 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -8.79 | 26.93 | 39.20 | 263.57 | 0.6309 | 597.0 | 508.1 | |
| 0.00 | 1.32 | 0.00 | 0.84 | -8.80 | 26.78 | 39.05 | 263.55 | 0.6288 | 711.0 | 560.9 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -8.90 | 26.63 | 38.90 | 263.38 | 0.6268 | 660.0 | 556.9 | |
| 4.85 | 63.28 | 3.08 | 39.93 | -10.71 | 26.61 | 38.88 | 260.48 | 0.6276 | 776.6 | 583.4 | |
| 1.06 | -15.00 | 0.67 | -15.00 | -11.05 | 26.54 | 38.81 | 259.93 | 0.6270 | 746.7 | 999999 | |
| 1.94 | -15.00 | 1.23 | -15.00 | -11.29 | 26.54 | 38.81 | 259.55 | 0.6272 | 607.8 | 999999 | |
| 0.62 | 1.76 | 0.39 | 1.11 | -8.99 | 26.21 | 38.48 | 263.23 | 0.6212 | 826.0 | 688.8 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -9.50 | 26.16 | 38.43 | 262.39 | 0.6208 | 605.0 | 493.8 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -13.64 | 26.80 | 39.07 | 255.86 | 0.6339 | 633.0 | 572.1 | |
| 0.88 | -15.00 | 0.56 | -15.00 | -10.95 | 26.21 | 38.48 | 260.06 | 0.6225 | 763.6 | 999999 | |
| 10.75 | -15.00 | 6.79 | -15.00 | -11.28 | 26.19 | 38.45 | 259.52 | 0.6225 | 973.1 | 999999 | |
| 5.02 | -15.00 | 3.16 | -15.00 | -11.03 | 25.91 | 38.18 | 259.90 | 0.6185 | 1021.5 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.88 | -9.05 | 25.64 | 37.91 | 263.09 | 0.6134 | 509.0 | 408.8 | |
| 1.15 | -15.00 | 0.72 | -15.00 | -10.96 | 25.63 | 37.90 | 259.98 | 0.6146 | 928.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -8.84 | 25.15 | 37.42 | 263.41 | 0.6067 | 548.0 | 484.2 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -9.25 | 24.36 | 36.63 | 262.69 | 0.5959 | 502.0 | 445.2 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -9.64 | 24.03 | 36.30 | 262.01 | 0.5916 | 713.0 | 448.7 | |
| 0.79 | 1.76 | 0.49 | 1.08 | -11.54 | 24.02 | 36.29 | 258.79 | 0.5934 | 782.1 | 653.7 | |
| 0.00 | 1.76 | 0.00 | 1.08 | -13.14 | 23.70 | 35.97 | 256.05 | 0.5916 | 810.0 | 772.2 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -9.28 | 22.93 | 35.20 | 262.54 | 0.5760 | 606.0 | 451.2 | |
| 0.00 | 1.50 | 0.00 | 0.91 | -10.16 | 22.78 | 35.05 | 260.98 | 0.5745 | 703.0 | 613.4 | |
| 0.00 | 3.08 | 0.00 | 1.86 | -9.78 | 22.62 | 34.89 | 261.63 | 0.5719 | 590.0 | 658.0 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -9.45 | 22.54 | 34.81 | 262.20 | 0.5706 | 677.0 | 582.8 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -9.91 | 22.41 | 34.68 | 261.38 | 0.5691 | 764.0 | 645.1 | |
| 1.76 | 43.89 | 1.07 | 26.54 | -12.83 | 22.78 | 35.05 | 256.36 | 0.5784 | -470.0 | -268.8 | |
| 0.00 | 1.76 | 0.00 | 1.06 | -11.66 | 22.60 | 34.87 | 258.36 | 0.5739 | -566.0 | -384.0 | |
| 0.00 | 1.41 | 0.00 | 0.85 | -11.82 | 22.44 | 34.71 | 258.05 | 0.5719 | -735.0 | -557.3 | |
| 18.33 | -36.00 | 11.07 | -36.00 | -12.51 | 22.51 | 34.77 | 256.85 | 0.5740 | -988.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -10.98 | 22.25 | 34.52 | 259.48 | 0.5680 | -714.0 | -541.1 | |
| 0.62 | 1.67 | 0.37 | 1.01 | -11.53 | 22.25 | 34.52 | 258.52 | 0.5688 | -875.1 | -760.0 | |
| 0.00 | 1.41 | 0.00 | 0.85 | -11.32 | 22.18 | 34.45 | 258.87 | 0.5675 | -546.0 | -501.1 | |
| 0.35 | 5.46 | 0.21 | 3.27 | -11.55 | 21.88 | 34.15 | 258.41 | 0.5636 | 532.5 | 26.7 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -11.19 | 21.83 | 34.10 | 259.05 | 0.5624 | 490.0 | 423.3 | |
| 0.00 | 1.41 | 0.00 | 0.84 | -9.84 | 21.52 | 33.79 | 261.40 | 0.5563 | 757.0 | 582.7 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -12.35 | 21.66 | 33.93 | 256.95 | 0.5619 | -572.0 | -417.2 | |
| 0.79 | 7.31 | 0.47 | 4.36 | -12.05 | 21.54 | 33.81 | 257.45 | 0.5597 | 900.9 | 311.0 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -10.90 | 18.81 | 31.08 | 259.00 | 0.5185 | -660.0 | -484.9 | |
| 0.00 | 1.67 | 0.00 | 0.97 | -11.70 | 18.48 | 30.75 | 257.37 | 0.5151 | -653.0 | -624.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -12.56 | 17.80 | 30.07 | 255.52 | 0.5072 | -656.0 | -507.8 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -13.73 | 17.49 | 29.76 | 253.14 | 0.5060 | -876.0 | -693.1 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -13.55 | 17.33 | 29.60 | 253.41 | 0.5030 | -758.0 | -623.0 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -13.80 | 17.33 | 29.60 | 252.93 | 0.5037 | -834.0 | -776.0 | |
| 11.90 | 19.12 | 6.73 | 10.81 | -12.12 | 16.34 | 28.61 | 255.93 | 0.4846 | -968.1 | -688.9 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -9.86 | 16.10 | 28.37 | 260.54 | 0.4766 | -687.0 | -557.3 | |
| 0.00 | 1.85 | 0.00 | 1.04 | -11.16 | 16.09 | 28.36 | 257.82 | 0.4787 | -815.0 | -670.4 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -9.84 | 15.96 | 28.23 | 260.56 | 0.4744 | -667.0 | -581.2 | |
| 0.00 | 2.38 | 0.00 | 1.34 | -12.14 | 15.92 | 28.19 | 255.74 | 0.4784 | -741.0 | -723.0 | |
| 1.76 | 3.26 | 0.99 | 1.84 | -12.23 | 15.79 | 28.06 | 255.50 | 0.4768 | -921.0 | -726.4 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -10.16 | 15.47 | 27.74 | 259.76 | 0.4675 | -762.0 | -636.8 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -12.00 | 15.66 | 27.93 | 255.94 | 0.4742 | -769.0 | -611.1 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -9.75 | 15.37 | 27.63 | 260.63 | 0.4652 | -582.0 | -580.1 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -10.20 | 15.30 | 27.57 | 259.64 | 0.4650 | -716.0 | -611.2 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -11.92 | 15.37 | 27.64 | 256.01 | 0.4698 | -869.0 | -690.2 | |
| 0.00 | 8.37 | 0.00 | 4.66 | -9.70 | 14.98 | 27.25 | 260.65 | 0.4593 | -515.0 | -866.3 | |
| 0.00 | 3.53 | 0.00 | 1.97 | -11.81 | 15.12 | 27.39 | 256.15 | 0.4657 | -994.0 | -849.8 | |
| 0.00 | 4.58 | 0.00 | 2.55 | -10.14 | 14.71 | 26.98 | 259.64 | 0.4559 | -1026.0 | -782.8 | |
| 0.00 | 2.64 | 0.00 | 1.47 | -11.53 | 14.64 | 26.91 | 256.58 | 0.4578 | -918.0 | -837.2 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -11.31 | 12.91 | 25.18 | 256.46 | 0.4310 | -928.0 | -745.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
