SDO HMI 2014-04-08 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.51 | 0.00 | 11.52 | -7.22 | 10.05 | 22.32 | 266.32 | 0.3845 | 492.0 | 516.4 | |
|
previous
or next observation for the same group /

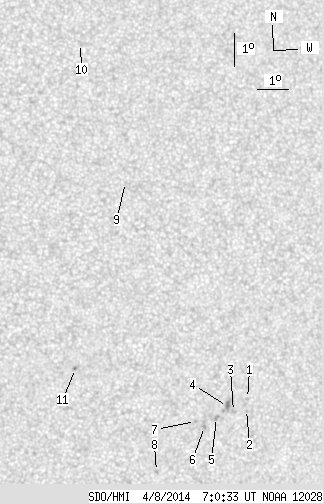

back to the solar disc SDO HMI 2014-04-08 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.57 | -8.18 | 11.93 | 24.20 | 263.61 | 0.4100 | 692.0 | 549.2 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -8.52 | 11.92 | 24.19 | 262.80 | 0.4102 | 375.0 | 400.0 | |
| 0.00 | 2.12 | 0.00 | 1.14 | -8.59 | 11.49 | 23.76 | 262.53 | 0.4036 | 731.0 | 619.6 | |
| 0.00 | 6.87 | 0.00 | 3.71 | -8.45 | 11.28 | 23.55 | 262.84 | 0.4001 | 1164.0 | 832.2 | |
| 0.00 | 2.38 | 0.00 | 1.28 | -8.80 | 10.94 | 23.21 | 261.91 | 0.3951 | 878.0 | 735.1 | |
| 0.00 | 1.85 | 0.00 | 0.99 | -9.08 | 10.57 | 22.83 | 261.09 | 0.3896 | 922.0 | 665.5 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -8.94 | 10.26 | 22.53 | 261.37 | 0.3845 | 737.0 | 588.4 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -10.49 | 9.08 | 21.35 | 256.85 | 0.3693 | 780.0 | 622.2 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -1.85 | 7.74 | 20.01 | 281.21 | 0.3501 | -17.0 | -22.7 | |
| 0.00 | 2.73 | 0.00 | 1.44 | 2.30 | 6.32 | 18.59 | 293.83 | 0.3497 | 0.0 | -0.4 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -7.49 | 6.29 | 18.56 | 264.64 | 0.3184 | -850.0 | -768.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
