SDO HMI 2014-04-08 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.58 | 0.00 | 11.61 | -8.75 | 9.85 | 22.66 | 261.65 | 0.3870 | 225.4 | 393.4 | |
|
previous
or next observation for the same group /

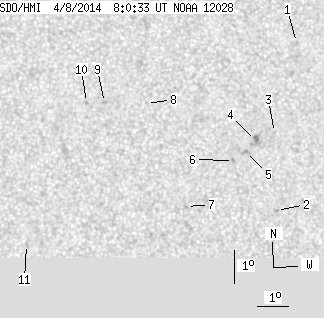

back to the solar disc SDO HMI 2014-04-08 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.82 | -5.45 | 12.50 | 25.32 | 270.16 | 0.4275 | 669.0 | 621.9 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -10.52 | 12.16 | 24.98 | 258.19 | 0.4259 | -781.0 | -604.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -8.18 | 11.92 | 24.73 | 263.67 | 0.4185 | 739.0 | 606.6 | |
| 0.00 | 6.08 | 0.00 | 3.30 | -8.45 | 11.30 | 24.12 | 262.93 | 0.4090 | 1105.0 | 858.8 | |
| 0.00 | 3.26 | 0.00 | 1.76 | -8.82 | 10.99 | 23.81 | 261.95 | 0.4046 | 804.0 | 678.9 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -9.08 | 10.61 | 23.43 | 261.23 | 0.3990 | 857.0 | 730.5 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -10.52 | 9.16 | 21.98 | 257.05 | 0.3792 | 666.0 | 570.8 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -7.48 | 7.67 | 20.49 | 264.95 | 0.3499 | -661.0 | -678.7 | |
| 0.00 | 1.85 | 0.00 | 0.97 | -7.49 | 6.32 | 19.14 | 264.71 | 0.3279 | -864.0 | -698.6 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -7.51 | 5.75 | 18.56 | 264.55 | 0.3184 | -798.0 | -586.7 | |
| 0.00 | 1.76 | 0.00 | 0.92 | -11.84 | 4.06 | 16.87 | 249.81 | 0.3040 | 743.0 | 529.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
