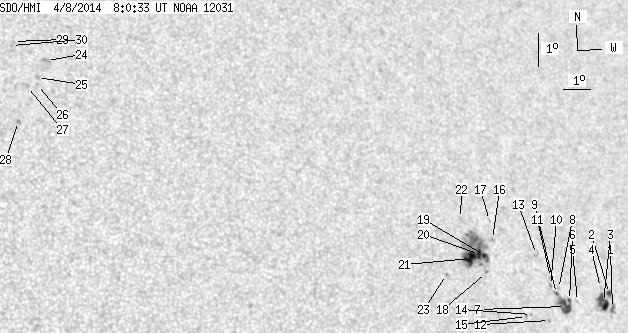

SDO HMI 2014-04-08 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.87 | 145.07 | 28.91 | 97.36 | 2.94 | 28.37 | 41.19 | 281.71 | 0.6722 | -66.3 | -30.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.15 | 5.38 | 0.83 | 3.89 | 1.85 | 33.36 | 46.18 | 278.34 | 0.7311 | -583.2 | -389.0 | |
| 1.85 | 3.70 | 1.34 | 2.68 | 2.30 | 33.25 | 46.06 | 278.97 | 0.7308 | -496.1 | -251.2 | |
| 10.66 | 17.10 | 7.66 | 12.28 | 2.01 | 32.97 | 45.79 | 278.64 | 0.7269 | -811.0 | -563.6 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 2.45 | 32.86 | 45.68 | 279.28 | 0.7266 | -427.0 | -389.4 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 1.95 | 31.86 | 44.67 | 278.85 | 0.7135 | -499.0 | -431.0 | |
| 1.06 | 20.01 | 0.74 | 13.96 | 1.96 | 31.52 | 44.34 | 278.95 | 0.7094 | -654.7 | -655.8 | |
| 10.22 | -6.00 | 7.13 | -6.00 | 1.76 | 31.34 | 44.16 | 278.72 | 0.7068 | -878.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.86 | 2.29 | 31.07 | 43.89 | 279.53 | 0.7047 | -255.0 | -208.1 | |
| 0.71 | -6.00 | 0.49 | -6.00 | 2.13 | 30.98 | 43.80 | 279.33 | 0.7032 | -736.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.98 | 2.35 | 30.74 | 43.56 | 279.71 | 0.7008 | -695.0 | -628.6 | |
| 0.00 | 1.67 | 0.00 | 1.16 | 2.60 | 30.75 | 43.57 | 280.05 | 0.7015 | -681.0 | -461.0 | |
| 0.00 | 1.06 | 0.00 | 0.73 | 1.29 | 30.66 | 43.48 | 278.23 | 0.6974 | -694.0 | -609.3 | |
| 0.00 | 2.56 | 0.00 | 1.76 | 3.26 | 30.20 | 43.02 | 281.14 | 0.6965 | 460.0 | 242.5 | |
| 0.00 | 0.71 | 0.00 | 0.48 | 1.42 | 29.92 | 42.74 | 278.60 | 0.6885 | 596.0 | 515.4 | |
| 0.00 | 1.23 | 0.00 | 0.84 | 1.34 | 29.72 | 42.53 | 278.55 | 0.6857 | 706.0 | 544.4 | |
| 0.00 | 1.23 | 0.00 | 0.83 | 3.59 | 28.43 | 41.25 | 282.18 | 0.6755 | -595.0 | -469.2 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 4.16 | 28.35 | 41.16 | 283.03 | 0.6761 | -596.0 | -506.2 | |
| 0.00 | 1.23 | 0.00 | 0.82 | 2.56 | 28.14 | 40.96 | 280.78 | 0.6689 | 676.0 | 554.6 | |
| 2.20 | 69.01 | 1.47 | 45.64 | 3.08 | 28.08 | 40.90 | 281.55 | 0.6696 | 666.1 | 106.6 | |
| 3.97 | -19.00 | 2.63 | -19.00 | 3.09 | 27.89 | 40.70 | 281.64 | 0.6672 | 841.5 | 999999 | |
| 10.05 | -19.00 | 6.62 | -19.00 | 2.95 | 27.52 | 40.34 | 281.54 | 0.6621 | 995.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 4.14 | 27.19 | 40.01 | 283.42 | 0.6615 | -544.0 | -462.3 | |
| 0.00 | 1.23 | 0.00 | 0.80 | 2.39 | 26.56 | 39.37 | 281.04 | 0.6480 | -636.0 | -508.8 | |
| 0.00 | 4.05 | 0.00 | 2.30 | 8.15 | 12.54 | 25.36 | 299.10 | 0.4872 | 759.0 | 579.6 | |
| 0.00 | 2.47 | 0.00 | 1.39 | 7.60 | 12.21 | 25.02 | 298.44 | 0.4788 | 519.0 | 461.2 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 7.39 | 12.19 | 25.01 | 298.05 | 0.4770 | 819.0 | 666.0 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 7.31 | 11.85 | 24.67 | 298.24 | 0.4719 | 810.0 | 588.3 | |
| 0.00 | 1.85 | 0.00 | 1.03 | 6.22 | 11.49 | 24.31 | 296.50 | 0.4592 | 883.0 | 682.9 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 8.69 | 11.48 | 24.29 | 301.16 | 0.4772 | 645.0 | 517.5 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 8.56 | 11.40 | 24.22 | 301.01 | 0.4753 | 792.0 | 619.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
