SDO HMI 2014-04-08 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.92 | 90.42 | 8.94 | 48.00 | 10.66 | 359.04 | 12.40 | 324.20 | 0.3600 | 102.2 | -197.6 | |
|
previous
or next observation for the same group /

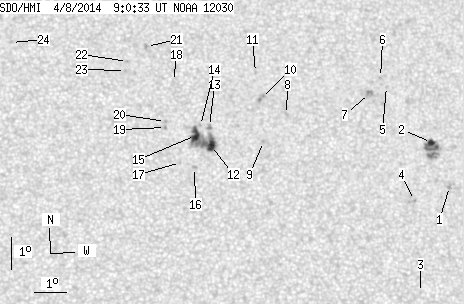

back to the solar disc SDO HMI 2014-04-08 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.29 | 0.00 | 1.24 | 9.06 | 4.34 | 17.70 | 310.50 | 0.3966 | -863.0 | -658.8 | |
| 3.26 | 21.15 | 1.77 | 11.44 | 10.41 | 3.84 | 17.20 | 313.86 | 0.4051 | -1019.8 | -921.6 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 5.75 | 3.28 | 16.64 | 305.19 | 0.3502 | -6.0 | 1.7 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 8.59 | 3.20 | 16.56 | 311.47 | 0.3779 | -925.0 | -757.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 12.14 | 2.51 | 15.87 | 319.13 | 0.4103 | -514.0 | -464.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.41 | 2.33 | 15.69 | 319.89 | 0.4118 | -731.0 | -538.5 | |
| 0.00 | 4.49 | 0.00 | 2.43 | 11.90 | 1.95 | 15.31 | 319.75 | 0.4017 | -925.0 | -834.1 | |
| 0.00 | 2.03 | 0.00 | 1.08 | 11.17 | 359.29 | 12.65 | 323.86 | 0.3660 | 733.0 | 628.2 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 10.31 | 358.53 | 11.90 | 324.10 | 0.3474 | 800.0 | 621.7 | |
| 0.00 | 3.26 | 0.00 | 1.73 | 11.69 | 358.53 | 11.89 | 326.35 | 0.3658 | 756.0 | 781.1 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 12.47 | 358.38 | 11.74 | 327.87 | 0.3752 | 760.0 | 557.5 | |
| 6.17 | 37.19 | 3.24 | 19.51 | 10.15 | 356.91 | 10.27 | 327.73 | 0.3303 | 1076.3 | -153.2 | |
| 0.00 | 2.82 | 0.00 | 1.48 | 10.74 | 356.87 | 10.23 | 328.79 | 0.3383 | 714.0 | 530.9 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 10.77 | 356.59 | 9.95 | 329.52 | 0.3363 | -640.0 | -523.5 | |
| 7.49 | -12.00 | 3.93 | -12.00 | 10.45 | 356.43 | 9.79 | 329.46 | 0.3304 | -1082.7 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.92 | 9.45 | 356.36 | 9.73 | 327.99 | 0.3158 | 961.0 | 757.5 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 9.60 | 355.93 | 9.30 | 329.38 | 0.3142 | 644.0 | 388.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 12.14 | 355.80 | 9.16 | 333.45 | 0.3499 | 17.0 | 5.3 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 10.69 | 355.50 | 8.87 | 332.22 | 0.3264 | 792.0 | 630.4 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 10.88 | 355.51 | 8.87 | 332.47 | 0.3292 | 932.0 | 731.5 | |
| 0.00 | 2.38 | 0.00 | 1.26 | 13.24 | 355.00 | 8.36 | 336.78 | 0.3607 | 832.0 | 662.4 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 12.75 | 354.39 | 7.76 | 337.78 | 0.3495 | 750.0 | 635.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 12.47 | 354.32 | 7.68 | 337.64 | 0.3448 | 869.0 | 752.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 13.32 | 350.81 | 4.18 | 347.96 | 0.3411 | 676.0 | 495.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
