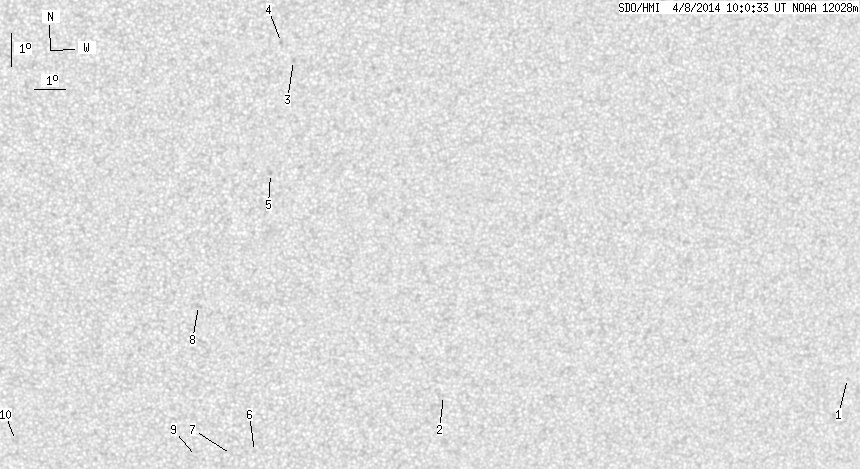

SDO HMI 2014-04-08 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.59 | 0.00 | 8.12 | -21.78 | 348.65 | 2.56 | 189.90 | 0.2906 | -260.9 | -271.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.54 | -23.53 | 9.13 | 23.04 | 229.42 | 0.4745 | 593.0 | 501.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -24.44 | 355.39 | 9.30 | 204.97 | 0.3501 | -9.0 | -7.8 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -14.15 | 350.15 | 4.06 | 206.09 | 0.1570 | -883.0 | -671.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -13.60 | 349.77 | 3.68 | 205.51 | 0.1457 | -884.0 | -712.0 | |
| 0.00 | 1.94 | 0.00 | 0.98 | -17.59 | 349.49 | 3.41 | 195.84 | 0.2083 | -924.0 | -704.6 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -26.28 | 349.16 | 3.07 | 187.93 | 0.3500 | 16.0 | 5.8 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -26.38 | 348.39 | 2.30 | 185.93 | 0.3501 | -3.0 | 3.7 | |
| 0.00 | 2.73 | 0.00 | 1.41 | -21.68 | 347.25 | 1.16 | 184.01 | 0.2705 | -536.0 | -538.7 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -26.44 | 347.22 | 1.13 | 182.91 | 0.3497 | 19.0 | 6.4 | |
| 0.00 | 3.70 | 0.00 | 1.96 | -25.90 | 341.17 | -4.92 | 167.19 | 0.3494 | 2.0 | 1.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
