SDO HMI 2014-04-08 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.34 | 90.14 | 9.72 | 47.97 | 10.61 | 359.06 | 12.97 | 322.86 | 0.3645 | -31.7 | -314.4 | |
|
previous
or next observation for the same group /

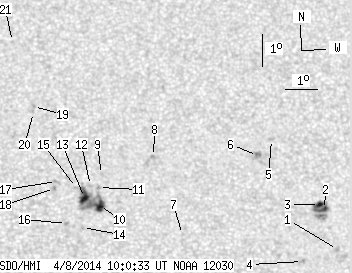

back to the solar disc SDO HMI 2014-04-08 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.29 | 0.00 | 1.24 | 9.02 | 4.33 | 18.24 | 309.56 | 0.4027 | -854.0 | -678.0 | |
| 2.03 | 20.71 | 1.10 | 11.24 | 10.25 | 3.99 | 17.90 | 312.42 | 0.4114 | -953.7 | -879.6 | |
| 2.91 | -2.00 | 1.58 | -2.00 | 10.40 | 3.84 | 17.75 | 312.94 | 0.4113 | -990.7 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.90 | 8.61 | 3.20 | 17.11 | 310.58 | 0.3846 | -944.0 | -805.8 | |
| 0.00 | 2.38 | 0.00 | 1.30 | 12.40 | 2.42 | 16.34 | 318.74 | 0.4183 | -679.0 | -602.2 | |
| 0.00 | 4.93 | 0.00 | 2.67 | 11.88 | 1.94 | 15.85 | 318.74 | 0.4071 | -975.0 | -805.2 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 9.34 | 359.45 | 13.36 | 319.12 | 0.3498 | 5.0 | 2.3 | |
| 0.00 | 2.38 | 0.00 | 1.27 | 11.77 | 358.65 | 12.56 | 325.02 | 0.3729 | 811.0 | 645.5 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 11.16 | 356.99 | 10.90 | 327.81 | 0.3499 | 59.0 | 116.2 | |
| 6.79 | 39.39 | 3.57 | 20.70 | 10.19 | 356.89 | 10.81 | 326.48 | 0.3356 | 982.4 | -276.2 | |
| 0.00 | 1.76 | 0.00 | 0.93 | 10.75 | 356.88 | 10.79 | 327.43 | 0.3433 | 696.0 | 557.0 | |
| 0.00 | 1.85 | 0.00 | 0.97 | 10.81 | 356.64 | 10.55 | 328.12 | 0.3419 | -493.0 | -458.1 | |
| 6.61 | -10.00 | 3.47 | -10.00 | 10.43 | 356.44 | 10.35 | 328.00 | 0.3349 | -1137.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 9.49 | 356.34 | 10.25 | 326.67 | 0.3210 | 844.0 | 703.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 10.74 | 356.20 | 10.11 | 329.08 | 0.3372 | -764.0 | -629.5 | |
| 0.00 | 1.59 | 0.00 | 0.83 | 9.61 | 355.85 | 9.76 | 328.15 | 0.3183 | 788.0 | 684.4 | |
| 0.00 | 2.47 | 0.00 | 1.30 | 10.92 | 355.59 | 9.50 | 330.91 | 0.3347 | 868.0 | 543.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 10.70 | 355.52 | 9.43 | 330.76 | 0.3309 | 826.0 | 660.7 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 13.28 | 354.96 | 8.87 | 335.59 | 0.3645 | 725.0 | 600.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 13.09 | 354.95 | 8.86 | 335.38 | 0.3616 | 661.0 | 448.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 15.35 | 354.38 | 8.29 | 339.12 | 0.3919 | 632.0 | 508.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
