SDO HMI 2014-04-08 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.63 | 17.71 | 9.03 | 13.75 | 17.66 | 30.50 | 44.96 | 299.00 | 0.7721 | -693.3 | -443.3 | |
|
previous
or next observation for the same group /

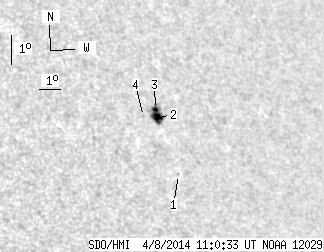

back to the solar disc SDO HMI 2014-04-08 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.75 | 15.89 | 30.89 | 45.35 | 296.68 | 0.7681 | -602.0 | -528.8 | |
| 8.72 | 15.86 | 6.77 | 12.32 | 17.70 | 30.51 | 44.97 | 299.04 | 0.7724 | -743.1 | -420.6 | |
| 2.91 | -2.00 | 2.26 | -2.00 | 17.96 | 30.51 | 44.96 | 299.35 | 0.7735 | -677.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.68 | 17.68 | 29.88 | 44.34 | 299.34 | 0.7662 | -484.0 | -459.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
