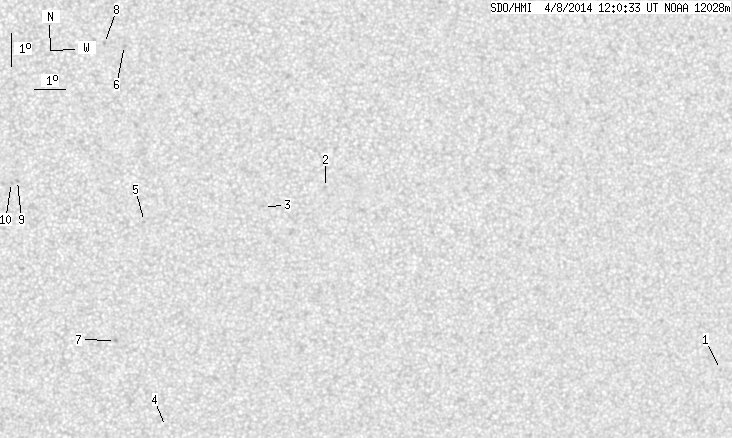

SDO HMI 2014-04-08 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.75 | 0.00 | 5.53 | -19.20 | 350.73 | 5.73 | 199.76 | 0.2568 | -588.8 | -523.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.45 | -23.54 | 9.18 | 24.18 | 230.61 | 0.4879 | 602.0 | 570.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -18.27 | 355.22 | 10.23 | 218.41 | 0.2726 | -890.0 | -691.4 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -18.92 | 353.27 | 8.27 | 211.39 | 0.2625 | -550.0 | -554.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -25.80 | 350.39 | 5.40 | 194.08 | 0.3498 | -17.0 | -12.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -19.39 | 349.48 | 4.49 | 197.77 | 0.2430 | -822.0 | -672.1 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -14.02 | 348.74 | 3.75 | 204.67 | 0.1527 | -626.0 | -594.5 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -23.09 | 348.64 | 3.65 | 191.31 | 0.2998 | -969.0 | -773.2 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -13.96 | 348.12 | 3.13 | 201.13 | 0.1476 | -944.0 | -717.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -18.14 | 345.44 | 0.44 | 182.01 | 0.2099 | -872.0 | -773.6 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -18.20 | 345.25 | 0.25 | 181.14 | 0.2108 | -800.0 | -669.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
