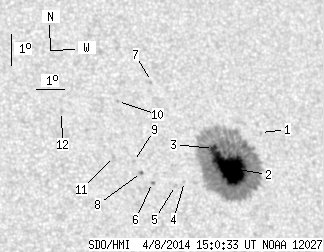

SDO HMI 2014-04-08 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.26 | 344.72 | 37.80 | 209.28 | 12.79 | 13.31 | 29.96 | 302.46 | 0.5794 | -970.5 | -375.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.71 | 13.95 | 14.69 | 31.35 | 302.97 | 0.6041 | 647.0 | 584.5 | |
| 57.16 | 332.92 | 34.71 | 202.28 | 12.74 | 13.44 | 30.09 | 302.26 | 0.5805 | -1354.0 | -400.1 | |
| 4.40 | -2.00 | 2.67 | -2.00 | 13.34 | 12.92 | 29.57 | 303.61 | 0.5788 | -946.2 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 12.24 | 11.75 | 28.41 | 302.99 | 0.5565 | -695.0 | -570.9 | |
| 0.00 | 1.94 | 0.00 | 1.15 | 12.09 | 11.42 | 28.08 | 303.08 | 0.5514 | -395.0 | -347.5 | |
| 0.35 | 1.41 | 0.21 | 0.83 | 12.15 | 10.63 | 27.28 | 303.92 | 0.5422 | 617.5 | 467.0 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 15.38 | 11.01 | 27.67 | 308.36 | 0.5731 | -678.0 | -657.3 | |
| 0.35 | 1.41 | 0.21 | 0.83 | 12.45 | 10.28 | 26.94 | 304.72 | 0.5404 | 673.2 | 536.9 | |
| 0.00 | 1.41 | 0.00 | 0.83 | 12.78 | 10.05 | 26.70 | 305.48 | 0.5403 | 644.0 | 445.9 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 14.68 | 9.73 | 26.38 | 308.65 | 0.5526 | 604.0 | 562.1 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 12.91 | 9.37 | 26.03 | 306.37 | 0.5333 | 748.0 | 562.1 | |
| 0.00 | 1.41 | 0.00 | 0.82 | 14.27 | 7.75 | 24.41 | 310.21 | 0.5265 | 698.0 | 544.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
