SDO HMI 2014-04-08 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.52 | 23.34 | 5.37 | 13.19 | -2.67 | 314.79 | -28.56 | 84.35 | 0.4817 | 248.3 | 188.9 | |
|
previous
or next observation for the same group /

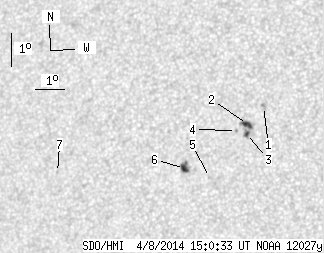

back to the solar disc SDO HMI 2014-04-08 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.29 | 0.00 | 1.28 | -1.66 | 316.38 | -26.96 | 81.76 | 0.4599 | 1011.0 | 695.9 | |
| 4.14 | 10.48 | 2.32 | 5.87 | -2.18 | 315.83 | -27.52 | 83.06 | 0.4670 | 946.5 | 722.4 | |
| 1.50 | -2.00 | 0.84 | -2.00 | -2.45 | 315.79 | -27.56 | 83.64 | 0.4670 | 951.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -2.34 | 315.45 | -27.89 | 83.52 | 0.4724 | 707.0 | 599.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -3.70 | 314.49 | -28.86 | 86.62 | 0.4844 | -754.0 | -618.0 | |
| 3.88 | 7.66 | 2.21 | 4.37 | -3.39 | 313.64 | -29.71 | 86.16 | 0.4978 | -971.8 | -767.8 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -3.25 | 309.13 | -34.21 | 86.82 | 0.5644 | 515.0 | 414.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
