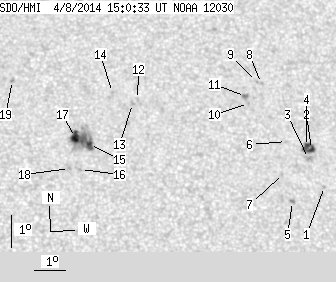

SDO HMI 2014-04-08 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.97 | 75.66 | 9.70 | 40.72 | 10.52 | 359.07 | 15.73 | 317.14 | 0.3913 | -321.5 | -234.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.63 | 9.18 | 4.37 | 21.03 | 305.89 | 0.4391 | -711.0 | -561.2 | |
| 3.35 | 10.48 | 1.85 | 5.79 | 10.32 | 4.02 | 20.68 | 308.44 | 0.4454 | -981.5 | -743.3 | |
| 0.00 | 3.88 | 0.00 | 2.14 | 10.04 | 3.91 | 20.56 | 308.08 | 0.4412 | -924.0 | -755.8 | |
| 3.96 | -2.00 | 2.19 | -2.00 | 10.41 | 3.87 | 20.52 | 308.81 | 0.4443 | -1049.9 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.30 | 8.68 | 3.30 | 19.96 | 306.37 | 0.4208 | -930.0 | -740.1 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 10.54 | 3.23 | 19.88 | 309.94 | 0.4379 | -726.0 | -527.8 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 9.54 | 3.06 | 19.72 | 308.34 | 0.4260 | -512.0 | -538.2 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 12.34 | 2.55 | 19.20 | 314.01 | 0.4485 | -682.0 | -525.6 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 12.40 | 2.39 | 19.04 | 314.34 | 0.4474 | -595.0 | -613.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 11.69 | 2.08 | 18.73 | 313.64 | 0.4363 | -785.0 | -670.0 | |
| 0.00 | 3.26 | 0.00 | 1.79 | 11.91 | 1.99 | 18.65 | 314.13 | 0.4377 | -1021.0 | -865.2 | |
| 0.00 | 1.67 | 0.00 | 0.90 | 11.71 | 358.52 | 15.17 | 319.68 | 0.3978 | 664.0 | 494.2 | |
| 0.00 | 2.03 | 0.00 | 1.09 | 11.58 | 358.35 | 15.01 | 319.77 | 0.3945 | 934.0 | 710.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 11.91 | 357.74 | 14.39 | 321.49 | 0.3923 | 707.0 | 621.2 | |
| 4.05 | 41.13 | 2.15 | 21.85 | 10.26 | 356.93 | 13.58 | 320.31 | 0.3634 | 1015.2 | -187.5 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 9.47 | 356.61 | 13.27 | 319.53 | 0.3503 | 786.0 | 657.7 | |
| 6.61 | -15.00 | 3.51 | -15.00 | 10.46 | 356.50 | 13.15 | 321.58 | 0.3617 | -1131.6 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 9.49 | 356.27 | 12.92 | 320.32 | 0.3470 | 842.0 | 701.5 | |
| 0.00 | 1.59 | 0.00 | 0.84 | 12.22 | 354.60 | 11.26 | 328.55 | 0.3673 | 916.0 | 767.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
