SDO HMI 2014-04-08 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.80 | 27.56 | 6.60 | 15.37 | -2.65 | 315.05 | -27.19 | 83.93 | 0.4609 | 105.1 | 190.1 | |
|
previous
or next observation for the same group /

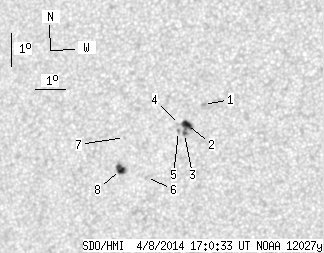

back to the solar disc SDO HMI 2014-04-08 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.20 | 0.00 | 1.21 | -1.60 | 316.49 | -25.75 | 81.14 | 0.4414 | 982.0 | 708.0 | |
| 5.28 | 10.57 | 2.93 | 5.85 | -2.17 | 315.91 | -26.33 | 82.64 | 0.4488 | 954.9 | 765.5 | |
| 1.06 | -2.00 | 0.59 | -2.00 | -2.44 | 315.84 | -26.40 | 83.26 | 0.4493 | 956.4 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.08 | -2.16 | 315.68 | -26.57 | 82.70 | 0.4524 | 422.0 | 315.5 | |
| 0.00 | 1.67 | 0.00 | 0.93 | -2.37 | 315.64 | -26.60 | 83.17 | 0.4525 | 812.0 | 673.9 | |
| 0.00 | 1.94 | 0.00 | 1.08 | -3.70 | 314.52 | -27.72 | 86.36 | 0.4671 | -645.0 | -564.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -2.46 | 313.80 | -28.44 | 83.94 | 0.4804 | -657.0 | -535.6 | |
| 5.46 | 8.45 | 3.08 | 4.77 | -3.41 | 313.64 | -28.60 | 85.96 | 0.4810 | -992.4 | -648.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
