SDO HMI 2014-04-08 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.71 | 220.95 | 64.16 | 345.67 | 12.54 | 272.78 | -69.47 | 74.58 | 0.9480 | -167.1 | -84.4 | |
|
previous
or next observation for the same group /

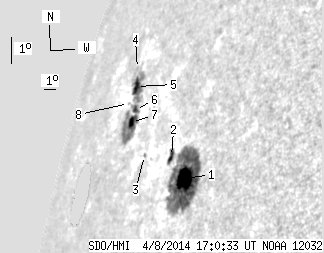

back to the solar disc SDO HMI 2014-04-08 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.40 | 148.12 | 29.40 | 203.87 | 11.39 | 275.30 | -66.95 | 75.28 | 0.9342 | -616.8 | -196.9 | |
| 3.87 | 7.05 | 5.74 | 10.45 | 12.22 | 273.80 | -68.44 | 74.70 | 0.9438 | -139.6 | -79.2 | |
| 0.00 | 1.41 | 0.00 | 2.38 | 12.52 | 271.19 | -71.05 | 74.90 | 0.9576 | -95.0 | -37.0 | |
| 0.00 | 0.97 | 0.00 | 2.08 | 15.60 | 267.95 | -74.29 | 72.35 | 0.9740 | -172.0 | -142.3 | |
| 6.87 | 24.13 | 14.14 | 49.03 | 14.98 | 268.44 | -73.80 | 72.89 | 0.9717 | 256.5 | 268.1 | |
| 3.08 | 39.01 | 6.04 | 77.30 | 14.19 | 269.03 | -73.21 | 73.59 | 0.9687 | 439.6 | 34.2 | |
| 4.49 | -6.00 | 8.84 | -6.00 | 13.79 | 268.92 | -73.32 | 74.01 | 0.9689 | 219.1 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.56 | 14.49 | 267.97 | -74.27 | 73.47 | 0.9732 | -238.0 | -264.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
