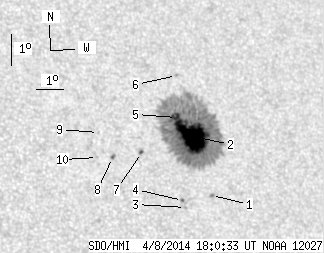

SDO HMI 2014-04-08 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.39 | 347.65 | 36.05 | 214.90 | 12.74 | 13.35 | 31.66 | 300.98 | 0.5994 | -986.1 | -378.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.85 | 0.00 | 1.14 | 10.90 | 13.88 | 32.19 | 297.83 | 0.5937 | -499.0 | -401.2 | |
| 51.96 | 336.04 | 32.11 | 207.85 | 12.73 | 13.43 | 31.74 | 300.90 | 0.6003 | -1338.2 | -397.9 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 10.47 | 12.89 | 31.20 | 297.91 | 0.5787 | 603.0 | 418.5 | |
| 0.53 | 2.38 | 0.32 | 1.44 | 10.68 | 12.81 | 31.12 | 298.31 | 0.5790 | 658.2 | 420.5 | |
| 4.49 | -2.00 | 2.77 | -2.00 | 13.31 | 12.94 | 31.25 | 302.13 | 0.5983 | -976.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 14.66 | 13.15 | 31.46 | 303.89 | 0.6104 | 630.0 | 464.4 | |
| 0.88 | 1.67 | 0.53 | 1.01 | 12.12 | 11.52 | 29.83 | 301.56 | 0.5730 | -754.0 | -653.0 | |
| 0.53 | 1.67 | 0.32 | 1.00 | 11.91 | 10.48 | 28.79 | 302.15 | 0.5587 | 625.0 | 471.6 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 12.68 | 10.08 | 28.39 | 303.69 | 0.5596 | 548.0 | 392.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 11.88 | 9.95 | 28.26 | 302.58 | 0.5520 | 644.0 | 551.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
