SDO HMI 2014-04-08 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.99 | 114.40 | 25.25 | 83.30 | 2.94 | 27.77 | 46.08 | 280.18 | 0.7311 | 250.8 | 6.2 | |
|
previous
or next observation for the same group /

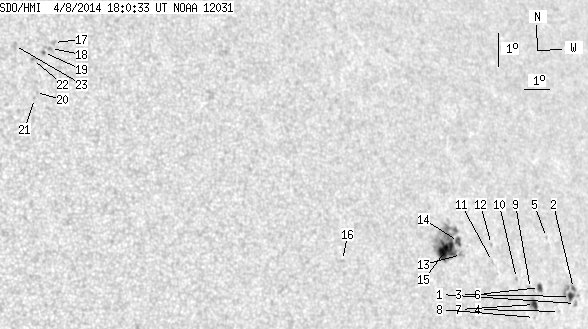

back to the solar disc SDO HMI 2014-04-08 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.93 | 1.65 | 33.50 | 51.80 | 276.83 | 0.7934 | -498.0 | -392.4 | |
| 0.79 | 1.85 | 0.64 | 1.50 | 2.09 | 33.42 | 51.73 | 277.40 | 0.7934 | -471.0 | -329.8 | |
| 3.08 | 8.10 | 2.49 | 6.52 | 1.84 | 33.26 | 51.57 | 277.12 | 0.7913 | -683.0 | -627.3 | |
| 0.00 | 0.53 | 0.00 | 0.42 | 1.34 | 32.71 | 51.02 | 276.60 | 0.7846 | -448.0 | -427.8 | |
| 0.00 | 0.79 | 0.00 | 0.63 | 3.54 | 32.21 | 50.52 | 279.49 | 0.7833 | -465.0 | -428.8 | |
| 2.47 | 4.32 | 1.93 | 3.37 | 1.99 | 31.78 | 50.09 | 277.62 | 0.7757 | -660.5 | -444.0 | |
| 3.61 | 9.16 | 2.80 | 7.10 | 1.45 | 31.53 | 49.84 | 276.98 | 0.7720 | -659.1 | -413.1 | |
| 0.00 | 0.53 | 0.00 | 0.41 | 1.06 | 31.52 | 49.83 | 276.48 | 0.7712 | -549.0 | -477.0 | |
| 0.00 | 2.99 | 0.00 | 2.32 | 1.92 | 31.36 | 49.67 | 277.62 | 0.7710 | -512.0 | -585.4 | |
| 0.00 | 0.88 | 0.00 | 0.67 | 2.18 | 30.72 | 49.03 | 278.09 | 0.7644 | -668.0 | -562.5 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 2.61 | 29.65 | 47.96 | 278.90 | 0.7533 | 328.0 | 348.9 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 3.12 | 29.64 | 47.95 | 279.57 | 0.7542 | 387.0 | 296.1 | |
| 0.00 | 2.47 | 0.00 | 1.80 | 2.71 | 28.28 | 46.59 | 279.38 | 0.7377 | 372.0 | 328.2 | |
| 3.08 | 66.57 | 2.25 | 48.17 | 3.10 | 28.17 | 46.48 | 279.92 | 0.7373 | 389.8 | 143.4 | |
| 20.96 | -14.00 | 15.14 | -14.00 | 2.81 | 27.63 | 45.94 | 279.68 | 0.7304 | 872.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 2.16 | 23.26 | 41.57 | 279.98 | 0.6755 | -531.0 | -472.4 | |
| 0.00 | 2.20 | 0.00 | 1.32 | 8.17 | 12.80 | 31.11 | 294.31 | 0.5634 | 598.0 | 506.2 | |
| 0.00 | 1.76 | 0.00 | 1.05 | 7.97 | 12.68 | 30.99 | 294.09 | 0.5607 | 834.0 | 671.5 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 7.84 | 12.42 | 30.73 | 294.04 | 0.5564 | 827.0 | 757.4 | |
| 0.00 | 0.35 | 0.00 | 0.21 | 6.58 | 12.04 | 30.35 | 292.20 | 0.5443 | 154.0 | 260.8 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 6.40 | 11.99 | 30.30 | 291.92 | 0.5426 | 748.0 | 584.2 | |
| 0.00 | 1.59 | 0.00 | 0.94 | 7.60 | 12.01 | 30.32 | 293.94 | 0.5497 | 863.0 | 673.8 | |
| 0.00 | 3.70 | 0.00 | 2.18 | 8.00 | 11.41 | 29.72 | 295.05 | 0.5441 | 199.0 | 361.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
