SDO HMI 2014-04-08 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.66 | 21.75 | 5.86 | 11.96 | -2.78 | 315.04 | -25.54 | 83.65 | 0.4352 | 117.7 | 212.0 | |
|
previous
or next observation for the same group /

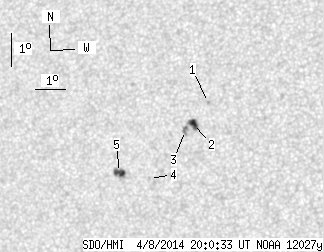

back to the solar disc SDO HMI 2014-04-08 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.48 | -1.53 | 316.65 | -23.93 | 80.16 | 0.4133 | 866.0 | 762.1 | |
| 5.20 | 7.31 | 2.83 | 3.98 | -2.14 | 316.15 | -24.44 | 81.83 | 0.4194 | 1029.6 | 729.3 | |
| 0.00 | 3.79 | 0.00 | 2.07 | -2.34 | 315.88 | -24.71 | 82.41 | 0.4231 | 814.0 | 720.6 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -3.73 | 314.64 | -25.94 | 86.00 | 0.4394 | -660.0 | -531.8 | |
| 5.46 | 8.54 | 3.03 | 4.75 | -3.50 | 313.64 | -26.94 | 85.74 | 0.4554 | -954.1 | -608.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
