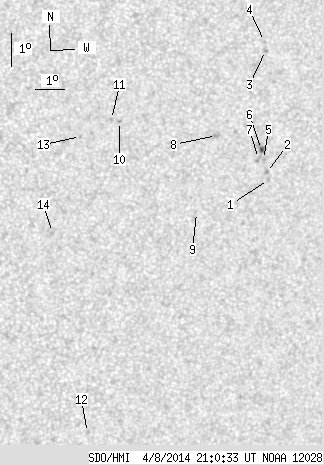

SDO HMI 2014-04-08 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.41 | 23.43 | 0.82 | 13.40 | -8.60 | 10.16 | 30.13 | 263.19 | 0.5032 | 388.8 | 452.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.87 | -9.09 | 11.92 | 31.88 | 262.56 | 0.5281 | 536.0 | 397.9 | |
| 0.00 | 2.20 | 0.00 | 1.28 | -8.88 | 11.82 | 31.79 | 262.94 | 0.5266 | 740.0 | 650.3 | |
| 0.00 | 1.94 | 0.00 | 1.12 | -5.23 | 11.51 | 31.48 | 269.94 | 0.5221 | 738.0 | 584.3 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -4.96 | 11.47 | 31.43 | 270.46 | 0.5216 | 773.0 | 643.2 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -8.50 | 11.68 | 31.65 | 263.66 | 0.5242 | 711.0 | 643.8 | |
| 1.41 | 4.58 | 0.82 | 2.66 | -8.20 | 11.58 | 31.55 | 264.22 | 0.5226 | 946.2 | 728.8 | |
| 0.00 | 2.73 | 0.00 | 1.58 | -8.48 | 11.50 | 31.47 | 263.68 | 0.5216 | 740.0 | 648.0 | |
| 0.00 | 2.29 | 0.00 | 1.31 | -7.87 | 9.97 | 29.93 | 264.79 | 0.4984 | 787.0 | 687.6 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -10.21 | 9.48 | 29.44 | 259.99 | 0.4933 | 581.0 | 526.2 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -7.61 | 6.61 | 26.58 | 265.15 | 0.4469 | -794.0 | -695.5 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -7.56 | 6.33 | 26.30 | 265.24 | 0.4426 | -727.0 | -630.8 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -17.03 | 6.52 | 26.49 | 244.81 | 0.4733 | 446.0 | 420.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -8.12 | 5.33 | 25.29 | 263.86 | 0.4272 | -635.0 | -533.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -11.04 | 4.61 | 24.58 | 256.80 | 0.4211 | 701.0 | 593.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
