SDO HMI 2014-04-08 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.89 | 258.44 | 64.27 | 354.10 | 12.49 | 272.79 | -66.69 | 74.07 | 0.9324 | -214.2 | -100.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-08 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

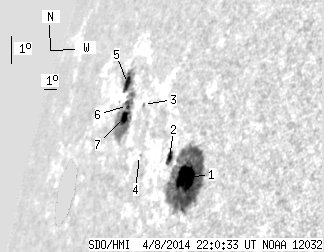

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.37 | 173.97 | 31.21 | 213.67 | 11.34 | 275.23 | -64.25 | 74.76 | 0.9170 | -704.3 | -244.6 | |
| 5.02 | 7.31 | 6.59 | 9.60 | 12.08 | 273.72 | -65.76 | 74.30 | 0.9278 | -213.7 | -60.0 | |
| 0.00 | 1.50 | 0.00 | 2.32 | 14.10 | 270.47 | -69.00 | 72.87 | 0.9489 | 525.0 | 446.4 | |
| 0.00 | 0.79 | 0.00 | 1.17 | 12.43 | 271.15 | -68.33 | 74.46 | 0.9434 | -18.0 | -37.7 | |
| 6.69 | 74.87 | 11.71 | 127.34 | 14.98 | 268.36 | -71.12 | 72.39 | 0.9602 | 287.8 | 146.9 | |
| 3.08 | -5.00 | 5.17 | -5.00 | 14.23 | 268.93 | -70.55 | 73.05 | 0.9568 | 481.2 | 999999 | |
| 5.73 | -5.00 | 9.59 | -5.00 | 13.85 | 268.92 | -70.56 | 73.44 | 0.9565 | 295.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
