SDO HMI 2014-04-08 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.23 | 18.51 | 0.72 | 10.65 | -8.69 | 9.20 | 30.27 | 262.70 | 0.5046 | 146.7 | 196.0 | |
|
previous
or next observation for the same group /

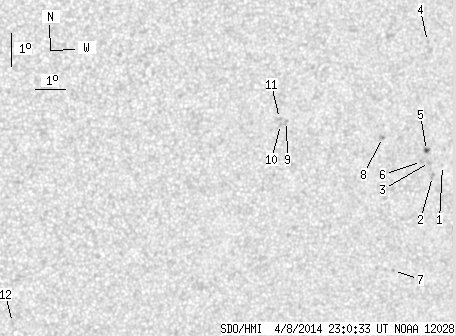

back to the solar disc SDO HMI 2014-04-08 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.16 | -8.61 | 12.25 | 33.32 | 263.55 | 0.5487 | 574.0 | 496.3 | |
| 0.00 | 2.29 | 0.00 | 1.35 | -8.96 | 11.92 | 32.99 | 262.89 | 0.5442 | 598.0 | 533.7 | |
| 0.00 | 1.76 | 0.00 | 1.04 | -8.55 | 11.77 | 32.84 | 263.64 | 0.5418 | 708.0 | 569.2 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -4.93 | 11.43 | 32.50 | 270.39 | 0.5375 | 406.0 | 487.1 | |
| 1.23 | 2.47 | 0.72 | 1.45 | -8.20 | 11.63 | 32.70 | 264.29 | 0.5395 | 872.9 | 745.6 | |
| 0.00 | 1.94 | 0.00 | 1.14 | -8.54 | 11.48 | 32.55 | 263.64 | 0.5375 | 805.0 | 582.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -11.86 | 10.84 | 31.91 | 257.32 | 0.5324 | -727.0 | -598.8 | |
| 0.00 | 1.94 | 0.00 | 1.12 | -7.89 | 10.03 | 31.10 | 264.79 | 0.5158 | 799.0 | 694.0 | |
| 0.00 | 1.67 | 0.00 | 0.94 | -7.58 | 6.66 | 27.73 | 265.26 | 0.4648 | -725.0 | -485.7 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -7.68 | 6.46 | 27.54 | 265.04 | 0.4618 | -663.0 | -557.5 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -7.50 | 6.42 | 27.49 | 265.42 | 0.4610 | -682.0 | -590.6 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -13.99 | 358.03 | 19.10 | 245.71 | 0.3499 | -2.0 | -7.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
