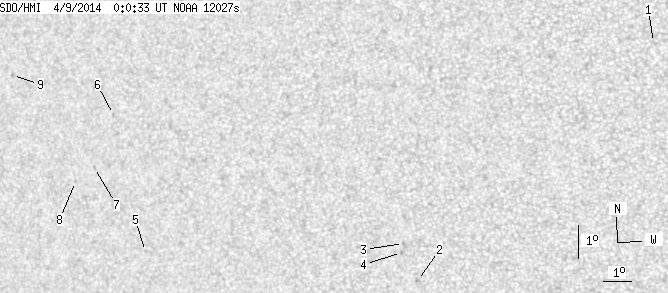

SDO HMI 2014-04-09 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.81 | 0.00 | 7.09 | -15.70 | 305.52 | -32.85 | 110.19 | 0.5537 | -41.2 | -1.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.20 | 0.00 | 1.16 | -12.38 | 318.64 | -19.74 | 109.34 | 0.3511 | 24.0 | 1.2 | |
| 0.00 | 2.03 | 0.00 | 1.17 | -19.26 | 309.64 | -28.73 | 117.91 | 0.5156 | 794.0 | 536.8 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -18.11 | 309.35 | -29.02 | 115.61 | 0.5134 | 841.0 | 639.1 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -18.38 | 309.23 | -29.15 | 116.03 | 0.5164 | 864.0 | 652.3 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -17.79 | 299.58 | -38.79 | 110.67 | 0.6399 | -524.0 | -367.5 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -13.56 | 299.26 | -39.11 | 104.03 | 0.6344 | -518.0 | -452.5 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -15.11 | 298.16 | -40.21 | 106.20 | 0.6514 | -559.0 | -473.7 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -15.48 | 297.29 | -41.08 | 106.57 | 0.6630 | -558.0 | -428.3 | |
| 0.00 | 1.41 | 0.00 | 0.95 | -12.11 | 295.42 | -42.96 | 101.27 | 0.6817 | -735.0 | -616.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
