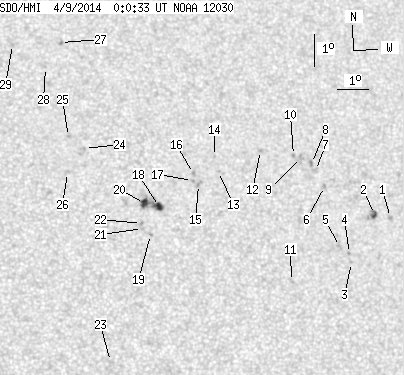

SDO HMI 2014-04-09 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.31 | 69.63 | 5.69 | 38.60 | 10.76 | 358.89 | 20.51 | 309.72 | 0.4491 | 32.6 | -88.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.92 | 10.32 | 4.62 | 26.24 | 301.97 | 0.5149 | -680.0 | -568.0 | |
| 2.29 | 5.29 | 1.32 | 3.04 | 10.38 | 4.08 | 25.71 | 302.62 | 0.5086 | -844.4 | -743.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 8.85 | 3.18 | 24.81 | 300.88 | 0.4850 | -840.0 | -678.3 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 9.13 | 3.13 | 24.76 | 301.43 | 0.4866 | -772.0 | -615.0 | |
| 0.00 | 2.47 | 0.00 | 1.39 | 9.33 | 2.82 | 24.44 | 302.12 | 0.4840 | -801.0 | -621.0 | |
| 0.00 | 1.94 | 0.00 | 1.10 | 11.19 | 2.47 | 24.09 | 305.70 | 0.4952 | -715.0 | -581.6 | |
| 0.00 | 3.00 | 0.00 | 1.71 | 11.68 | 2.21 | 23.84 | 306.81 | 0.4963 | -643.0 | -495.8 | |
| 0.00 | 2.29 | 0.00 | 1.31 | 11.90 | 2.10 | 23.72 | 307.30 | 0.4969 | -879.0 | -746.7 | |
| 0.00 | 2.56 | 0.00 | 1.45 | 12.07 | 1.78 | 23.40 | 307.96 | 0.4946 | -620.0 | -558.0 | |
| 0.00 | 1.85 | 0.00 | 1.05 | 12.12 | 1.52 | 23.14 | 308.36 | 0.4920 | -732.0 | -587.4 | |
| 0.00 | 2.38 | 0.00 | 1.32 | 8.17 | 1.14 | 22.77 | 301.85 | 0.4529 | -342.0 | -363.6 | |
| 0.00 | 1.76 | 0.00 | 0.99 | 12.24 | 0.43 | 22.05 | 309.89 | 0.4802 | -721.0 | -570.5 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 11.52 | 358.98 | 20.61 | 310.61 | 0.4562 | 631.0 | 586.4 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 11.99 | 358.89 | 20.52 | 311.53 | 0.4598 | 546.0 | 393.8 | |
| 0.00 | 3.26 | 0.00 | 1.80 | 11.08 | 358.30 | 19.92 | 310.82 | 0.4438 | 947.0 | 730.1 | |
| 0.00 | 1.85 | 0.00 | 1.02 | 11.43 | 358.16 | 19.79 | 311.61 | 0.4456 | 833.0 | 671.5 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 11.20 | 358.11 | 19.74 | 311.30 | 0.4428 | 959.0 | 854.1 | |
| 3.97 | 19.91 | 2.16 | 10.85 | 10.35 | 356.98 | 18.61 | 311.46 | 0.4207 | 773.7 | -226.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 9.46 | 356.64 | 18.27 | 310.35 | 0.4075 | 835.0 | 686.5 | |
| 4.05 | -18.00 | 2.21 | -18.00 | 10.43 | 356.51 | 18.13 | 312.35 | 0.4159 | -976.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 9.64 | 356.40 | 18.02 | 311.08 | 0.4063 | 857.0 | 741.1 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 9.80 | 356.37 | 18.00 | 311.40 | 0.4077 | 822.0 | 700.6 | |
| 0.00 | 2.56 | 0.00 | 1.35 | 5.50 | 355.20 | 16.83 | 304.25 | 0.3501 | -8.0 | 1.1 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 12.10 | 354.69 | 16.31 | 318.26 | 0.4143 | 630.0 | 517.4 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.46 | 354.20 | 15.83 | 319.71 | 0.4135 | 863.0 | 719.1 | |
| 0.00 | 2.20 | 0.00 | 1.19 | 11.33 | 354.10 | 15.73 | 318.01 | 0.3989 | 517.0 | 550.8 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 15.47 | 354.16 | 15.79 | 324.19 | 0.4500 | 763.0 | 649.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 14.65 | 353.61 | 15.24 | 324.02 | 0.4347 | 489.0 | 392.8 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 15.36 | 352.60 | 14.23 | 326.81 | 0.4348 | 697.0 | 568.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
