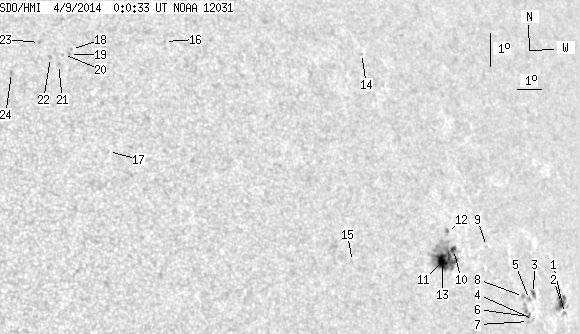

SDO HMI 2014-04-09 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.39 | 96.92 | 15.38 | 75.65 | 2.80 | 28.08 | 49.71 | 278.99 | 0.7716 | 279.0 | 74.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.85 | 0.00 | 1.62 | 1.54 | 33.50 | 55.12 | 276.07 | 0.8269 | -428.0 | -321.1 | |
| 3.26 | 10.93 | 2.85 | 9.53 | 1.83 | 33.35 | 54.98 | 276.45 | 0.8259 | -557.1 | -493.7 | |
| 0.97 | 3.08 | 0.82 | 2.60 | 2.01 | 31.91 | 53.54 | 276.93 | 0.8119 | -372.3 | -300.9 | |
| 0.00 | 1.32 | 0.00 | 1.11 | 1.22 | 31.88 | 53.50 | 275.97 | 0.8103 | -277.0 | -173.3 | |
| 0.00 | 1.94 | 0.00 | 1.63 | 1.81 | 31.70 | 53.32 | 276.73 | 0.8094 | -664.0 | -567.2 | |
| 0.62 | 6.26 | 0.52 | 5.22 | 1.29 | 31.63 | 53.25 | 276.10 | 0.8079 | -438.6 | -529.5 | |
| 0.00 | 1.23 | 0.00 | 1.03 | 1.13 | 31.62 | 53.25 | 275.92 | 0.8076 | 211.0 | 28.6 | |
| 0.00 | 1.50 | 0.00 | 1.25 | 1.87 | 31.40 | 53.02 | 276.87 | 0.8064 | -578.0 | -537.6 | |
| 0.00 | 0.26 | 0.00 | 0.21 | 3.24 | 29.66 | 51.28 | 278.93 | 0.7908 | 404.0 | 378.3 | |
| 2.20 | 55.95 | 1.71 | 43.10 | 3.02 | 28.07 | 49.70 | 279.02 | 0.7734 | 337.1 | 345.7 | |
| 0.97 | -10.00 | 0.75 | -10.00 | 2.86 | 27.88 | 49.50 | 278.85 | 0.7709 | 556.3 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.85 | 3.52 | 27.83 | 49.46 | 279.71 | 0.7718 | -507.0 | -442.0 | |
| 11.37 | -10.00 | 8.73 | -10.00 | 2.62 | 27.54 | 49.16 | 278.62 | 0.7667 | 803.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.85 | 8.75 | 24.58 | 46.20 | 287.41 | 0.7499 | 441.0 | 346.8 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 2.30 | 23.53 | 45.15 | 279.19 | 0.7200 | -462.0 | -404.0 | |
| 0.00 | 0.62 | 0.00 | 0.40 | 8.53 | 16.44 | 38.07 | 290.67 | 0.6540 | 558.0 | 512.0 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 5.00 | 14.00 | 35.62 | 286.54 | 0.6076 | 596.0 | 528.0 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 8.06 | 12.88 | 34.51 | 291.93 | 0.6069 | 489.0 | 426.3 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 7.90 | 12.79 | 34.42 | 291.74 | 0.6050 | 704.0 | 548.2 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 7.89 | 12.57 | 34.20 | 291.85 | 0.6020 | 616.0 | 455.2 | |
| 0.00 | 1.50 | 0.00 | 0.92 | 7.57 | 12.36 | 33.98 | 291.48 | 0.5977 | 322.0 | 388.6 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 7.77 | 12.08 | 33.71 | 291.95 | 0.5951 | 608.0 | 521.7 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 8.21 | 11.73 | 33.35 | 292.87 | 0.5928 | 667.0 | 603.9 | |
| 0.00 | 1.41 | 0.00 | 0.85 | 7.22 | 10.63 | 32.25 | 291.99 | 0.5731 | 729.0 | 620.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
