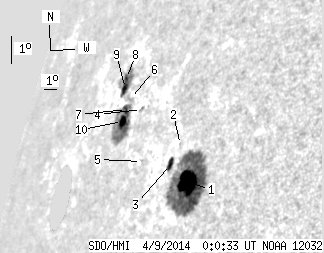

SDO HMI 2014-04-09 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.64 | 253.31 | 64.15 | 332.47 | 12.48 | 272.77 | -65.60 | 73.84 | 0.9257 | -245.3 | -97.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.25 | 168.21 | 34.57 | 198.54 | 11.33 | 275.23 | -63.14 | 74.52 | 0.9094 | -711.9 | -250.8 | |
| 0.00 | 0.26 | 0.00 | 0.33 | 12.62 | 274.19 | -64.19 | 73.38 | 0.9185 | -100.0 | -155.7 | |
| 4.67 | 6.78 | 5.87 | 8.53 | 12.03 | 273.73 | -64.64 | 74.10 | 0.9206 | -216.4 | -70.1 | |
| 0.00 | 2.11 | 0.00 | 3.12 | 14.10 | 270.38 | -67.99 | 72.67 | 0.9435 | 550.0 | 456.0 | |
| 0.00 | 0.62 | 0.00 | 0.86 | 12.36 | 271.37 | -67.00 | 74.27 | 0.9357 | -203.0 | -157.1 | |
| 0.00 | 3.70 | 0.00 | 5.84 | 14.57 | 269.12 | -69.26 | 72.44 | 0.9507 | 413.0 | 433.4 | |
| 2.91 | 48.02 | 4.60 | 76.14 | 14.24 | 268.99 | -69.38 | 72.81 | 0.9510 | 497.3 | 122.9 | |
| 1.15 | 23.61 | 1.91 | 39.11 | 15.30 | 268.23 | -70.15 | 71.87 | 0.9559 | 190.5 | 131.4 | |
| 5.02 | -8.00 | 8.27 | -8.00 | 14.96 | 268.39 | -69.99 | 72.18 | 0.9548 | 372.3 | 999999 | |
| 5.64 | -7.00 | 8.93 | -7.00 | 13.87 | 268.88 | -69.49 | 73.21 | 0.9512 | 310.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
