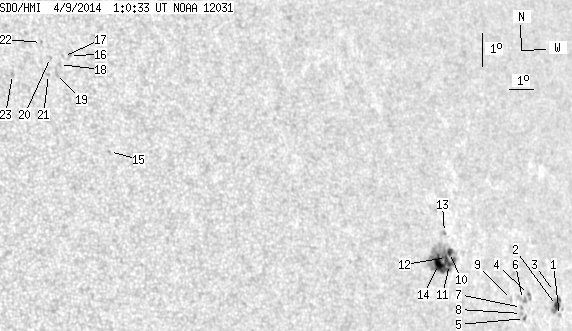

SDO HMI 2014-04-09 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.09 | 98.42 | 16.40 | 76.91 | 2.92 | 27.47 | 49.65 | 279.25 | 0.7705 | 133.9 | 143.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 1.41 | 1.53 | 33.48 | 55.66 | 275.96 | 0.8320 | -479.0 | -357.1 | |
| 6.08 | 10.66 | 5.39 | 9.44 | 1.82 | 33.33 | 55.51 | 276.33 | 0.8310 | -514.5 | -450.5 | |
| 0.00 | 0.44 | 0.00 | 0.39 | 2.23 | 33.25 | 55.43 | 276.85 | 0.8308 | -307.0 | -352.8 | |
| 0.53 | 3.08 | 0.45 | 2.64 | 2.02 | 31.88 | 54.05 | 276.85 | 0.8171 | -396.8 | -309.9 | |
| 0.53 | 1.76 | 0.45 | 1.49 | 1.28 | 31.64 | 53.81 | 275.99 | 0.8135 | -412.2 | -380.9 | |
| 0.00 | 5.11 | 0.00 | 4.33 | 1.85 | 31.56 | 53.74 | 276.69 | 0.8136 | -516.0 | -498.2 | |
| 0.00 | 1.32 | 0.00 | 1.12 | 1.60 | 31.50 | 53.67 | 276.40 | 0.8126 | -629.0 | -571.3 | |
| 0.00 | 1.15 | 0.00 | 0.97 | 1.42 | 31.49 | 53.67 | 276.18 | 0.8123 | -617.0 | -533.2 | |
| 0.00 | 1.23 | 0.00 | 1.03 | 1.80 | 31.00 | 53.17 | 276.74 | 0.8079 | -633.0 | -486.0 | |
| 2.73 | 57.28 | 2.15 | 44.66 | 2.98 | 28.04 | 50.22 | 278.83 | 0.7789 | 332.0 | 380.1 | |
| 1.59 | -10.00 | 1.25 | -10.00 | 2.61 | 28.02 | 50.19 | 278.38 | 0.7780 | 506.2 | 999999 | |
| 0.26 | -10.00 | 0.21 | -10.00 | 2.81 | 27.89 | 50.06 | 278.66 | 0.7770 | 612.7 | 999999 | |
| 0.00 | 1.67 | 0.00 | 1.31 | 3.57 | 27.85 | 50.02 | 279.63 | 0.7780 | -655.0 | -520.7 | |
| 8.37 | -10.00 | 6.50 | -10.00 | 2.57 | 27.50 | 49.68 | 278.44 | 0.7722 | 828.9 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.50 | 5.04 | 14.05 | 36.23 | 286.32 | 0.6157 | 575.0 | 516.6 | |
| 0.00 | 1.59 | 0.00 | 0.99 | 7.91 | 12.80 | 34.97 | 291.42 | 0.6121 | 587.0 | 458.7 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 7.86 | 12.57 | 34.75 | 291.48 | 0.6090 | 514.0 | 367.9 | |
| 0.00 | 1.85 | 0.00 | 1.15 | 7.61 | 12.40 | 34.58 | 291.18 | 0.6055 | 623.0 | 491.6 | |
| 0.00 | 2.91 | 0.00 | 1.80 | 7.32 | 12.26 | 34.44 | 290.82 | 0.6023 | 65.0 | 168.8 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 7.80 | 12.09 | 34.26 | 291.67 | 0.6025 | 689.0 | 594.0 | |
| 0.00 | 1.23 | 0.00 | 0.76 | 7.27 | 11.96 | 34.14 | 290.91 | 0.5982 | 718.0 | 607.1 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 8.25 | 11.80 | 33.98 | 292.54 | 0.6010 | 654.0 | 532.1 | |
| 0.00 | 1.94 | 0.00 | 1.18 | 7.19 | 10.65 | 32.83 | 291.58 | 0.5806 | 621.0 | 536.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
