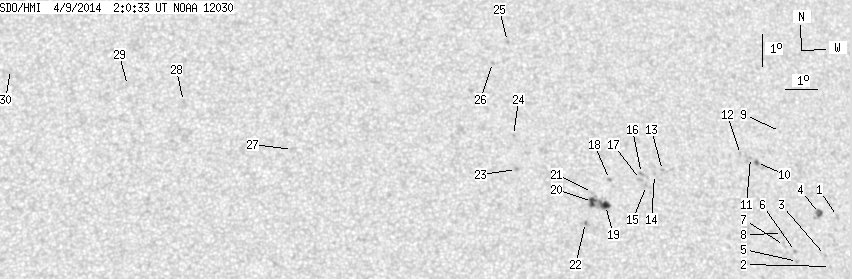

SDO HMI 2014-04-09 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.78 | 61.07 | 8.68 | 34.02 | 10.95 | 357.85 | 20.57 | 310.84 | 0.4555 | -48.7 | -67.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.94 | 0.00 | 1.13 | 10.32 | 4.69 | 27.41 | 300.84 | 0.5296 | -591.0 | -511.3 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 8.74 | 4.31 | 27.03 | 298.54 | 0.5134 | -494.0 | -436.0 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 9.08 | 4.16 | 26.89 | 299.24 | 0.5139 | -677.0 | -555.2 | |
| 2.56 | 5.64 | 1.48 | 3.27 | 10.38 | 4.07 | 26.80 | 301.53 | 0.5224 | -845.5 | -676.7 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 8.85 | 3.19 | 25.92 | 299.75 | 0.4995 | -766.0 | -616.6 | |
| 0.00 | 1.59 | 0.00 | 0.91 | 9.15 | 3.15 | 25.88 | 300.34 | 0.5012 | -786.0 | -587.8 | |
| 0.00 | 2.47 | 0.00 | 1.41 | 9.32 | 2.79 | 25.52 | 300.99 | 0.4979 | -633.0 | -482.4 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 9.70 | 2.75 | 25.48 | 301.67 | 0.5003 | -796.0 | -638.6 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 12.91 | 3.00 | 25.73 | 306.67 | 0.5296 | -598.0 | -546.3 | |
| 0.79 | 1.85 | 0.46 | 1.06 | 11.89 | 2.08 | 24.80 | 306.05 | 0.5098 | -820.2 | -742.4 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 12.04 | 1.89 | 24.61 | 306.50 | 0.5088 | -717.0 | -594.0 | |
| 0.00 | 1.67 | 0.00 | 0.96 | 12.12 | 1.56 | 24.29 | 307.00 | 0.5055 | -734.0 | -568.6 | |
| 0.00 | 1.59 | 0.00 | 0.89 | 11.50 | 358.90 | 21.63 | 309.21 | 0.4681 | 663.0 | 591.8 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 11.37 | 358.63 | 21.35 | 309.34 | 0.4635 | 670.0 | 564.8 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 11.01 | 358.34 | 21.06 | 309.11 | 0.4565 | 927.0 | 717.2 | |
| 0.00 | 2.12 | 0.00 | 1.18 | 11.38 | 358.20 | 20.93 | 309.93 | 0.4585 | 849.0 | 655.0 | |
| 0.00 | 2.20 | 0.00 | 1.23 | 11.19 | 358.15 | 20.88 | 309.67 | 0.4561 | 875.0 | 732.5 | |
| 0.00 | 1.67 | 0.00 | 0.92 | 11.15 | 357.14 | 19.87 | 311.01 | 0.4437 | 874.0 | 675.4 | |
| 4.58 | 17.28 | 2.52 | 9.48 | 10.33 | 356.95 | 19.68 | 309.83 | 0.4332 | 600.4 | -321.3 | |
| 3.88 | -19.00 | 2.12 | -19.00 | 10.44 | 356.54 | 19.26 | 310.63 | 0.4293 | -936.1 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 10.73 | 356.56 | 19.28 | 311.11 | 0.4324 | -594.0 | -426.2 | |
| 0.00 | 1.76 | 0.00 | 0.96 | 9.78 | 356.27 | 19.00 | 309.82 | 0.4194 | 865.0 | 767.6 | |
| 0.00 | 1.50 | 0.00 | 0.81 | 11.37 | 354.15 | 16.88 | 316.05 | 0.4118 | 842.0 | 664.4 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 12.44 | 354.13 | 16.85 | 317.88 | 0.4239 | 671.0 | 652.7 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 15.44 | 354.16 | 16.89 | 322.30 | 0.4598 | 755.0 | 600.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 14.75 | 353.62 | 16.35 | 322.24 | 0.4463 | 718.0 | 640.4 | |
| 2.56 | 3.00 | 1.35 | 1.58 | 11.83 | 347.11 | 9.84 | 331.33 | 0.3501 | -3.9 | 5.4 | |
| 1.41 | 1.85 | 0.75 | 0.98 | 13.30 | 343.77 | 6.50 | 341.59 | 0.3504 | -9.8 | -4.8 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 13.79 | 342.05 | 4.78 | 346.60 | 0.3505 | -24.0 | -0.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 14.29 | 338.43 | 1.16 | 356.78 | 0.3500 | -5.0 | -11.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
