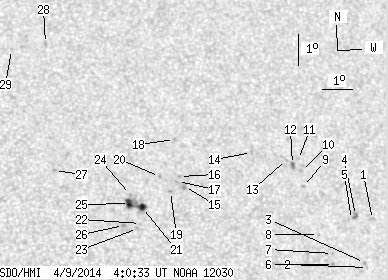

SDO HMI 2014-04-09 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.73 | 52.09 | 4.84 | 29.45 | 10.88 | 359.20 | 23.03 | 306.71 | 0.4804 | -99.5 | -98.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.20 | 0.00 | 1.30 | 10.30 | 4.69 | 28.52 | 299.80 | 0.5434 | -584.0 | -548.6 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 8.79 | 4.38 | 28.20 | 297.57 | 0.5290 | -528.0 | -401.4 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 8.94 | 4.29 | 28.11 | 297.90 | 0.5288 | -618.0 | -536.6 | |
| 0.00 | 3.00 | 0.00 | 1.76 | 10.39 | 4.11 | 27.94 | 300.47 | 0.5368 | -784.0 | -760.0 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 10.26 | 3.96 | 27.79 | 300.39 | 0.5339 | -509.0 | -658.1 | |
| 0.00 | 1.32 | 0.00 | 0.76 | 8.82 | 3.21 | 27.04 | 298.65 | 0.5139 | -792.0 | -609.3 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 9.16 | 3.21 | 27.03 | 299.24 | 0.5163 | -766.0 | -634.4 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 9.73 | 2.78 | 26.60 | 300.61 | 0.5149 | -748.0 | -582.2 | |
| 0.00 | 1.41 | 0.00 | 0.82 | 11.22 | 2.41 | 26.23 | 303.44 | 0.5217 | -754.0 | -582.2 | |
| 0.00 | 1.59 | 0.00 | 0.92 | 11.72 | 2.39 | 26.21 | 304.27 | 0.5255 | -614.0 | -461.8 | |
| 0.00 | 0.35 | 0.00 | 0.21 | 12.06 | 2.32 | 26.15 | 304.89 | 0.5275 | -477.0 | -366.5 | |
| 0.53 | 3.00 | 0.31 | 1.74 | 11.90 | 2.10 | 25.93 | 304.85 | 0.5234 | -849.0 | -712.0 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 12.05 | 1.91 | 25.74 | 305.28 | 0.5223 | -631.0 | -563.0 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 12.21 | 0.74 | 24.56 | 306.82 | 0.5096 | -612.0 | -477.1 | |
| 0.00 | 2.29 | 0.00 | 1.29 | 11.04 | 358.39 | 22.22 | 307.66 | 0.4707 | 906.0 | 734.6 | |
| 0.00 | 1.76 | 0.00 | 0.99 | 11.35 | 358.25 | 22.08 | 308.36 | 0.4719 | 859.0 | 638.0 | |
| 0.00 | 1.94 | 0.00 | 1.09 | 11.19 | 358.17 | 22.00 | 308.19 | 0.4694 | 758.0 | 674.9 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 12.52 | 358.19 | 22.01 | 310.36 | 0.4822 | 634.0 | 573.5 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 10.87 | 357.92 | 21.74 | 307.96 | 0.4633 | -533.0 | -389.7 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 11.33 | 357.59 | 21.42 | 309.17 | 0.4637 | 776.0 | 670.9 | |
| 3.79 | 15.25 | 2.10 | 8.43 | 10.33 | 356.96 | 20.78 | 308.27 | 0.4465 | 716.5 | -235.1 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 9.83 | 356.86 | 20.68 | 307.50 | 0.4405 | 663.0 | 532.4 | |
| 0.00 | 1.76 | 0.00 | 0.97 | 9.67 | 356.75 | 20.57 | 307.35 | 0.4376 | 749.0 | 524.3 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 10.72 | 356.59 | 20.42 | 309.46 | 0.4459 | -660.0 | -551.6 | |
| 4.41 | -21.00 | 2.43 | -21.00 | 10.44 | 356.54 | 20.37 | 309.03 | 0.4425 | -951.1 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.82 | 9.74 | 356.30 | 20.12 | 308.11 | 0.4328 | 898.0 | 752.4 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 11.39 | 354.18 | 18.00 | 314.22 | 0.4245 | 855.0 | 704.0 | |
| 0.00 | 1.85 | 0.00 | 1.04 | 15.44 | 354.21 | 18.03 | 320.46 | 0.4706 | 755.0 | 542.8 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 15.21 | 353.08 | 16.90 | 321.94 | 0.4569 | 509.0 | 480.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
