SDO HMI 2014-04-09 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.89 | 282.93 | 68.61 | 341.07 | 12.48 | 272.70 | -63.48 | 73.37 | 0.9119 | -236.6 | -99.6 | |
|
previous
or next observation for the same group /

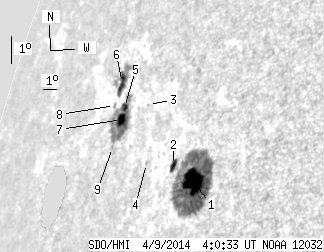

back to the solar disc SDO HMI 2014-04-09 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.74 | 195.46 | 34.76 | 214.63 | 11.32 | 275.24 | -60.94 | 74.02 | 0.8934 | -812.7 | -233.2 | |
| 4.50 | -1.00 | 5.21 | -1.00 | 11.96 | 273.68 | -62.49 | 73.69 | 0.9059 | -139.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.93 | 14.16 | 270.86 | -65.31 | 72.02 | 0.9279 | 325.0 | 341.4 | |
| 0.00 | 1.15 | 0.00 | 1.43 | 12.22 | 271.69 | -64.48 | 73.88 | 0.9198 | 15.0 | 34.6 | |
| 3.61 | 56.42 | 5.16 | 80.63 | 14.26 | 268.94 | -67.24 | 72.35 | 0.9394 | 464.7 | 170.4 | |
| 9.52 | 25.92 | 14.18 | 38.70 | 15.08 | 268.24 | -67.94 | 71.63 | 0.9443 | 372.2 | 73.6 | |
| 6.52 | -5.00 | 9.30 | -5.00 | 13.88 | 268.92 | -67.26 | 72.74 | 0.9390 | 388.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 2.36 | 14.41 | 268.01 | -68.17 | 72.38 | 0.9447 | -71.0 | -111.5 | |
| 0.00 | 1.68 | 0.00 | 2.39 | 13.02 | 268.68 | -67.49 | 73.69 | 0.9393 | 240.0 | 172.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
