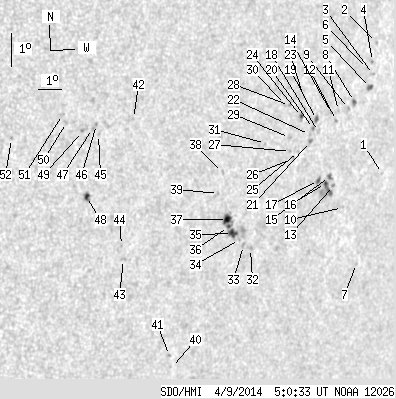

SDO HMI 2014-04-09 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.94 | 103.26 | 14.72 | 76.67 | -10.74 | 23.99 | 48.36 | 260.89 | 0.7447 | 108.4 | 203.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.80 | -10.48 | 29.29 | 53.67 | 261.43 | 0.8033 | 440.0 | 308.9 | |
| 0.00 | 1.32 | 0.00 | 1.07 | -6.60 | 28.21 | 52.59 | 266.32 | 0.7929 | 339.0 | 325.7 | |
| 0.00 | 1.23 | 0.00 | 1.00 | -7.57 | 28.22 | 52.59 | 265.10 | 0.7926 | 576.0 | 505.7 | |
| 0.00 | 1.15 | 0.00 | 0.92 | -7.18 | 28.10 | 52.48 | 265.59 | 0.7915 | 665.0 | 584.8 | |
| 1.68 | 3.26 | 1.35 | 2.63 | -7.97 | 28.14 | 52.51 | 264.60 | 0.7916 | 686.0 | 540.1 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -7.41 | 27.89 | 52.27 | 265.31 | 0.7891 | 698.0 | 603.0 | |
| 0.00 | 1.06 | 0.00 | 0.87 | -13.27 | 28.73 | 53.11 | 257.92 | 0.7983 | 265.0 | 260.1 | |
| 0.88 | 3.00 | 0.70 | 2.38 | -8.45 | 27.43 | 51.81 | 264.01 | 0.7839 | 590.0 | 445.5 | |
| 0.00 | 1.41 | 0.00 | 1.11 | -8.68 | 27.18 | 51.55 | 263.71 | 0.7812 | 555.0 | 478.4 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -11.66 | 27.56 | 51.93 | 259.91 | 0.7854 | 540.0 | 429.8 | |
| 0.00 | 0.79 | 0.00 | 0.62 | -8.78 | 26.71 | 51.08 | 263.59 | 0.7761 | 521.0 | 430.4 | |
| 0.00 | 1.32 | 0.00 | 1.03 | -9.09 | 26.67 | 51.05 | 263.20 | 0.7756 | 601.0 | 484.8 | |
| 0.00 | 1.32 | 0.00 | 1.04 | -11.04 | 26.95 | 51.33 | 260.68 | 0.7788 | 427.0 | 351.2 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -8.87 | 26.39 | 50.76 | 263.49 | 0.7725 | 508.0 | 460.5 | |
| 0.97 | 2.65 | 0.76 | 2.07 | -10.78 | 26.70 | 51.07 | 261.01 | 0.7760 | 685.4 | 509.1 | |
| 1.15 | 12.26 | 0.89 | 9.57 | -11.01 | 26.56 | 50.93 | 260.71 | 0.7745 | 787.6 | 542.9 | |
| 1.15 | 3.97 | 0.89 | 3.07 | -10.94 | 26.20 | 50.57 | 260.78 | 0.7706 | 734.0 | 588.6 | |
| 0.00 | 2.12 | 0.00 | 1.63 | -9.48 | 25.88 | 50.26 | 262.69 | 0.7669 | 565.0 | 467.0 | |
| 1.15 | 3.09 | 0.88 | 2.36 | -9.13 | 25.72 | 50.09 | 263.15 | 0.7651 | 681.8 | 572.5 | |
| 0.00 | 1.50 | 0.00 | 1.15 | -9.41 | 25.63 | 50.00 | 262.78 | 0.7641 | 741.0 | 647.2 | |
| 0.00 | 1.94 | 0.00 | 1.48 | -9.81 | 25.57 | 49.94 | 262.25 | 0.7634 | 685.0 | 609.5 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -9.61 | 25.48 | 49.85 | 262.52 | 0.7624 | 611.0 | 565.4 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -8.49 | 24.99 | 49.36 | 263.99 | 0.7570 | 315.0 | 383.3 | |
| 1.06 | 3.00 | 0.80 | 2.26 | -9.10 | 25.00 | 49.38 | 263.19 | 0.7571 | 661.0 | 529.3 | |
| 0.00 | 0.88 | 0.00 | 0.67 | -10.15 | 25.07 | 49.44 | 261.80 | 0.7579 | 435.0 | 439.7 | |
| 0.00 | 1.59 | 0.00 | 1.20 | -10.38 | 24.88 | 49.26 | 261.49 | 0.7558 | 698.0 | 597.4 | |
| 0.00 | 1.06 | 0.00 | 0.79 | -10.18 | 24.70 | 49.07 | 261.75 | 0.7537 | 667.0 | 505.5 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -8.81 | 24.39 | 48.77 | 263.58 | 0.7501 | 526.0 | 501.7 | |
| 0.00 | 1.68 | 0.00 | 1.25 | -9.77 | 24.57 | 48.94 | 262.30 | 0.7522 | 437.0 | 375.5 | |
| 0.00 | 2.12 | 0.00 | 1.57 | -8.80 | 24.20 | 48.58 | 263.60 | 0.7480 | 489.0 | 448.9 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -10.03 | 23.51 | 47.89 | 261.93 | 0.7401 | -540.0 | -404.1 | |
| 0.00 | 2.47 | 0.00 | 1.82 | -13.22 | 23.55 | 47.92 | 257.61 | 0.7421 | 321.0 | 371.3 | |
| 0.00 | 1.94 | 0.00 | 1.42 | -13.16 | 23.21 | 47.58 | 257.67 | 0.7381 | -365.0 | -228.1 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -12.99 | 22.98 | 47.36 | 257.88 | 0.7354 | -366.0 | -304.8 | |
| 4.14 | 18.25 | 3.00 | 13.16 | -12.83 | 22.63 | 47.00 | 258.06 | 0.7312 | -625.2 | -555.7 | |
| 0.88 | -35.00 | 0.64 | -35.00 | -12.64 | 22.40 | 46.77 | 258.31 | 0.7284 | -844.0 | 999999 | |
| 4.94 | -35.00 | 3.55 | -35.00 | -12.43 | 22.30 | 46.68 | 258.59 | 0.7271 | -791.5 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.00 | -11.04 | 21.78 | 46.15 | 260.48 | 0.7200 | 421.0 | 424.4 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -11.68 | 21.73 | 46.11 | 259.58 | 0.7199 | 629.0 | 522.2 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -17.06 | 21.05 | 45.42 | 252.02 | 0.7182 | 515.0 | 455.0 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -16.71 | 20.85 | 45.22 | 252.47 | 0.7153 | 606.0 | 486.7 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -9.70 | 17.74 | 42.11 | 262.22 | 0.6695 | -420.0 | -364.5 | |
| 0.00 | 1.94 | 0.00 | 1.30 | -13.95 | 18.13 | 42.50 | 255.93 | 0.6783 | -576.0 | -527.2 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -13.54 | 17.95 | 42.33 | 256.52 | 0.6755 | -733.0 | -683.0 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -10.27 | 16.40 | 40.77 | 261.27 | 0.6524 | -569.0 | -472.5 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -9.98 | 16.28 | 40.65 | 261.71 | 0.6506 | -578.0 | -489.2 | |
| 0.00 | 1.23 | 0.00 | 0.80 | -10.11 | 16.13 | 40.51 | 261.50 | 0.6489 | -336.0 | -385.4 | |
| 1.94 | 4.23 | 1.26 | 2.76 | -12.16 | 16.24 | 40.61 | 258.35 | 0.6520 | -837.6 | -702.3 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -10.22 | 15.75 | 40.12 | 261.29 | 0.6439 | -582.0 | -539.7 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -9.99 | 15.08 | 39.45 | 261.60 | 0.6349 | -614.0 | -536.9 | |
| 0.00 | 1.76 | 0.00 | 1.12 | -9.77 | 14.89 | 39.26 | 261.95 | 0.6322 | -402.0 | -359.8 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -10.61 | 13.02 | 37.39 | 260.42 | 0.6076 | -739.0 | -668.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
