SDO HMI 2014-04-09 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.07 | 0.00 | 12.65 | -19.89 | 324.86 | -10.76 | 147.82 | 0.2991 | 404.4 | 330.8 | |
|
previous
or next observation for the same group /

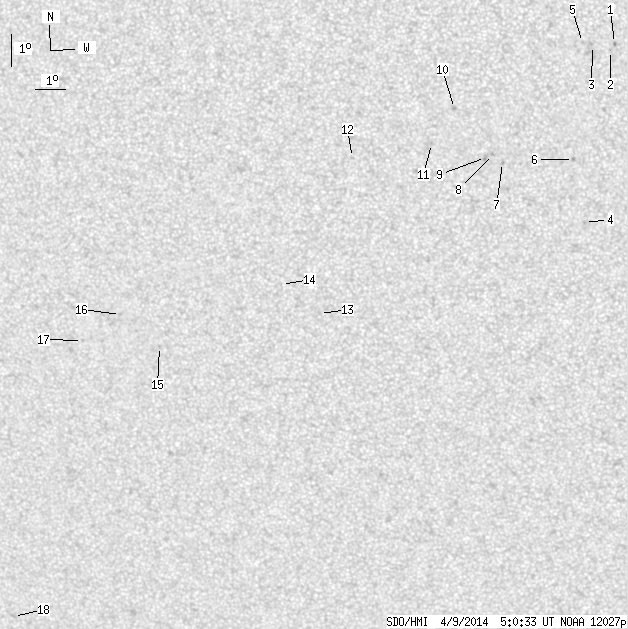

back to the solar disc SDO HMI 2014-04-09 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.71 | -14.32 | 332.91 | -2.72 | 162.27 | 0.1517 | 1029.0 | 833.3 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -14.53 | 332.78 | -2.85 | 161.94 | 0.1559 | 785.0 | 557.5 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -14.37 | 332.22 | -3.40 | 158.35 | 0.1566 | 672.0 | 625.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -19.79 | 331.86 | -3.77 | 165.41 | 0.2467 | 869.0 | 691.7 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -14.28 | 331.91 | -3.71 | 156.35 | 0.1572 | 766.0 | 624.3 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -17.85 | 331.56 | -4.07 | 161.73 | 0.2165 | 1007.0 | 817.0 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -17.91 | 329.31 | -6.32 | 153.06 | 0.2323 | 936.0 | 732.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.67 | 329.00 | -6.63 | 151.43 | 0.2310 | 1030.0 | 900.0 | |
| 0.00 | 2.03 | 0.00 | 1.03 | -17.75 | 328.77 | -6.85 | 150.82 | 0.2342 | 976.0 | 827.3 | |
| 0.00 | 2.20 | 0.00 | 1.12 | -16.24 | 327.85 | -7.77 | 143.86 | 0.2212 | 1002.0 | 765.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -17.30 | 327.08 | -8.55 | 144.11 | 0.2432 | 716.0 | 605.5 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -17.68 | 324.53 | -11.10 | 137.97 | 0.2751 | 628.0 | 509.7 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -22.49 | 323.08 | -12.55 | 144.86 | 0.3503 | -32.0 | -18.0 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -21.55 | 321.90 | -13.72 | 140.74 | 0.3502 | -13.0 | 1.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -23.37 | 317.56 | -18.07 | 136.73 | 0.4171 | -817.0 | -634.6 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -22.32 | 316.37 | -19.26 | 133.11 | 0.4197 | -864.0 | -695.4 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -23.09 | 314.93 | -20.69 | 132.63 | 0.4437 | -658.0 | -475.6 | |
| 0.00 | 2.38 | 0.00 | 1.44 | -31.87 | 310.43 | -25.19 | 140.85 | 0.5748 | -752.0 | -432.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
