SDO HMI 2014-04-09 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.85 | 17.64 | 2.56 | 9.31 | -2.81 | 315.80 | -19.83 | 81.47 | 0.3463 | 401.0 | 255.6 | |
|
previous
or next observation for the same group /

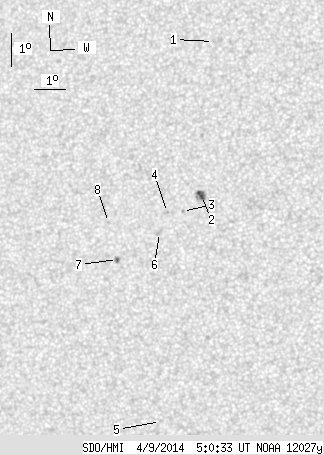

back to the solar disc SDO HMI 2014-04-09 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.61 | 2.67 | 317.12 | -18.51 | 65.25 | 0.3507 | -2.0 | -3.8 | |
| 3.88 | 7.05 | 2.04 | 3.70 | -1.97 | 316.74 | -18.88 | 78.55 | 0.3315 | 1071.4 | 742.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -2.43 | 316.13 | -19.50 | 80.28 | 0.3398 | 787.0 | 622.1 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -2.44 | 315.65 | -19.98 | 80.58 | 0.3475 | 857.0 | 639.6 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -8.71 | 315.19 | -20.43 | 98.71 | 0.3507 | 15.0 | 10.3 | |
| 0.00 | 2.38 | 0.00 | 1.26 | -3.03 | 315.38 | -20.24 | 82.39 | 0.3501 | 814.0 | 627.1 | |
| 0.97 | 2.65 | 0.52 | 1.41 | -3.79 | 314.01 | -21.61 | 85.02 | 0.3705 | -1090.4 | -813.6 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -2.67 | 313.75 | -21.88 | 82.13 | 0.3774 | -657.0 | -525.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
