SDO HMI 2014-04-09 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.04 | 290.52 | 68.80 | 340.97 | 12.43 | 272.86 | -62.77 | 73.26 | 0.9070 | -216.8 | -110.2 | |
|
previous
or next observation for the same group /

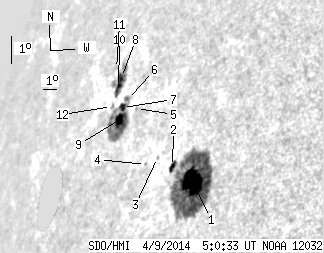

back to the solar disc SDO HMI 2014-04-09 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.62 | 206.23 | 35.12 | 222.36 | 11.33 | 275.19 | -60.44 | 73.88 | 0.8896 | -810.2 | -226.6 | |
| 3.70 | -1.00 | 4.21 | -1.00 | 11.95 | 273.67 | -61.95 | 73.59 | 0.9019 | -209.8 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.57 | 12.34 | 272.50 | -63.13 | 73.44 | 0.9109 | -174.0 | -137.1 | |
| 0.00 | 0.79 | 0.00 | 0.97 | 12.20 | 271.73 | -63.90 | 73.77 | 0.9159 | 83.0 | 74.3 | |
| 0.00 | 1.41 | 0.00 | 1.87 | 14.12 | 270.11 | -65.51 | 72.11 | 0.9290 | 575.0 | 475.9 | |
| 0.00 | 3.62 | 0.00 | 5.00 | 14.49 | 269.20 | -66.42 | 71.92 | 0.9350 | 496.0 | 427.1 | |
| 3.70 | 50.88 | 5.16 | 70.91 | 14.27 | 268.95 | -66.68 | 72.21 | 0.9362 | 515.6 | 141.6 | |
| 5.03 | 25.13 | 7.30 | 36.60 | 15.29 | 268.22 | -67.40 | 71.31 | 0.9416 | 398.2 | 36.7 | |
| 6.35 | -7.00 | 8.83 | -7.00 | 13.89 | 268.93 | -66.70 | 72.61 | 0.9358 | 417.1 | 999999 | |
| 5.64 | -8.00 | 8.18 | -8.00 | 14.94 | 268.20 | -67.42 | 71.67 | 0.9413 | 392.2 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.40 | 15.64 | 267.57 | -68.06 | 71.09 | 0.9456 | -297.0 | -279.3 | |
| 0.00 | 0.88 | 0.00 | 1.29 | 14.39 | 267.98 | -67.65 | 72.29 | 0.9419 | -21.0 | -91.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
