SDO HMI 2014-04-09 06:05:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.18 | 14.37 | 3.24 | 7.55 | -2.46 | 316.06 | -18.98 | 79.98 | 0.3316 | 623.2 | 374.1 | |
|
previous
or next observation for the same group /

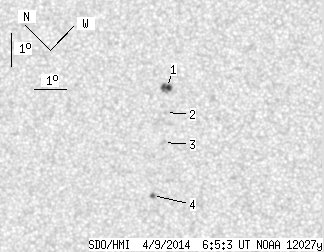

back to the solar disc SDO HMI 2014-04-09 06:05:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.03 | 8.11 | 2.63 | 4.24 | -1.92 | 316.80 | -18.24 | 77.97 | 0.3212 | 1073.8 | 761.9 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -2.41 | 316.21 | -18.83 | 79.84 | 0.3290 | 597.0 | 500.4 | |
| 0.00 | 2.56 | 0.00 | 1.35 | -2.98 | 315.48 | -19.56 | 81.93 | 0.3391 | 503.0 | 379.9 | |
| 1.15 | 2.29 | 0.61 | 1.22 | -3.82 | 314.01 | -21.03 | 84.91 | 0.3610 | -1079.8 | -820.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
