SDO HMI 2014-04-09 07:05:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.29 | 85.57 | 8.32 | 63.92 | -10.87 | 23.13 | 48.63 | 260.70 | 0.7476 | -7.9 | 106.2 | |
|
previous
or next observation for the same group /

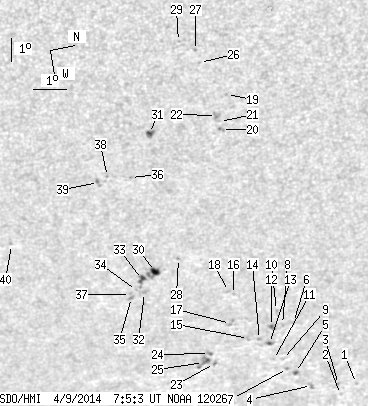

back to the solar disc SDO HMI 2014-04-09 07:05:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.59 | -6.61 | 28.29 | 53.80 | 266.24 | 0.8056 | 176.0 | 232.6 | |
| 0.00 | 1.06 | 0.00 | 0.89 | -7.10 | 28.77 | 54.28 | 265.60 | 0.8103 | 410.0 | 319.3 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -7.15 | 28.25 | 53.76 | 265.57 | 0.8049 | 622.0 | 455.9 | |
| 0.00 | 3.00 | 0.00 | 2.49 | -7.96 | 28.18 | 53.69 | 264.56 | 0.8039 | 734.0 | 574.0 | |
| 0.88 | 2.03 | 0.72 | 1.65 | -8.42 | 27.45 | 52.96 | 264.01 | 0.7962 | 593.6 | 468.8 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -8.38 | 25.01 | 50.52 | 264.11 | 0.7699 | 373.0 | 395.0 | |
| 0.00 | 1.15 | 0.00 | 0.93 | -8.65 | 27.22 | 52.73 | 263.72 | 0.7938 | 590.0 | 466.1 | |
| 0.00 | 1.41 | 0.00 | 1.09 | -8.72 | 25.06 | 50.57 | 263.67 | 0.7705 | 534.0 | 487.2 | |
| 0.00 | 0.53 | 0.00 | 0.42 | -8.79 | 26.76 | 52.27 | 263.56 | 0.7888 | 514.0 | 531.3 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -8.87 | 24.38 | 49.89 | 263.49 | 0.7628 | 611.0 | 514.2 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -9.06 | 26.72 | 52.23 | 263.21 | 0.7884 | 594.0 | 544.1 | |
| 0.71 | 3.09 | 0.55 | 2.39 | -9.05 | 25.12 | 50.63 | 263.24 | 0.7710 | 703.1 | 555.2 | |
| 0.97 | 3.00 | 0.76 | 2.36 | -9.15 | 25.93 | 51.44 | 263.11 | 0.7799 | 627.0 | 476.4 | |
| 0.00 | 1.59 | 0.00 | 1.24 | -9.44 | 25.70 | 51.21 | 262.73 | 0.7774 | 705.0 | 600.5 | |
| 0.00 | 1.94 | 0.00 | 1.52 | -9.77 | 25.61 | 51.12 | 262.31 | 0.7765 | 620.0 | 574.0 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -10.12 | 23.49 | 49.00 | 261.82 | 0.7529 | -520.0 | -442.6 | |
| 0.00 | 3.09 | 0.00 | 2.38 | -10.27 | 24.84 | 50.35 | 261.64 | 0.7680 | 533.0 | 577.7 | |
| 0.00 | 1.50 | 0.00 | 1.12 | -10.26 | 23.33 | 48.84 | 261.63 | 0.7512 | -317.0 | -368.1 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -9.76 | 14.91 | 40.42 | 262.01 | 0.6476 | -713.0 | -552.8 | |
| 0.00 | 2.56 | 0.00 | 1.69 | -10.03 | 16.31 | 41.81 | 261.69 | 0.6658 | -660.0 | -536.5 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -10.06 | 15.97 | 41.48 | 261.62 | 0.6616 | -534.0 | -452.9 | |
| 0.00 | 3.53 | 0.00 | 2.32 | -10.13 | 15.72 | 41.23 | 261.50 | 0.6583 | -601.0 | -581.0 | |
| 0.00 | 1.59 | 0.00 | 1.27 | -10.83 | 26.75 | 52.25 | 260.95 | 0.7887 | 594.0 | 562.0 | |
| 0.00 | 2.73 | 0.00 | 2.17 | -10.97 | 26.24 | 51.75 | 260.78 | 0.7833 | 759.0 | 661.4 | |
| 0.00 | 8.47 | 0.00 | 6.78 | -11.16 | 26.67 | 52.18 | 260.53 | 0.7879 | 698.0 | 621.6 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -10.47 | 13.56 | 39.07 | 260.81 | 0.6301 | -555.0 | -458.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -10.54 | 13.08 | 38.58 | 260.64 | 0.6237 | -626.0 | -536.6 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -11.68 | 21.70 | 47.21 | 259.64 | 0.7329 | 451.0 | 457.3 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -11.02 | 12.67 | 38.18 | 259.82 | 0.6187 | -701.0 | -606.4 | |
| 4.32 | 10.05 | 3.17 | 7.38 | -12.40 | 22.25 | 47.76 | 258.70 | 0.7396 | -770.4 | -611.8 | |
| 1.85 | 5.03 | 1.23 | 3.33 | -12.19 | 16.27 | 41.78 | 258.43 | 0.6670 | -819.7 | -624.2 | |
| 0.00 | 1.85 | 0.00 | 1.38 | -12.78 | 23.20 | 48.71 | 258.26 | 0.7507 | 218.0 | 176.2 | |
| 2.56 | 6.53 | 1.89 | 4.82 | -12.81 | 22.59 | 48.10 | 258.17 | 0.7439 | -592.6 | -401.4 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -13.02 | 23.10 | 48.60 | 257.93 | 0.7497 | -269.0 | -158.2 | |
| 0.00 | 1.85 | 0.00 | 1.39 | -13.19 | 23.42 | 48.93 | 257.74 | 0.7534 | 308.0 | 294.3 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -12.90 | 18.07 | 43.58 | 257.61 | 0.6903 | -711.0 | -595.0 | |
| 0.00 | 1.23 | 0.00 | 0.92 | -13.21 | 23.28 | 48.78 | 257.69 | 0.7519 | -257.0 | -176.5 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -13.58 | 17.99 | 43.50 | 256.60 | 0.6901 | -751.0 | -649.7 | |
| 0.00 | 3.09 | 0.00 | 2.12 | -13.87 | 18.23 | 43.74 | 256.22 | 0.6934 | -523.0 | -456.5 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -16.67 | 20.94 | 46.45 | 252.73 | 0.7294 | 640.0 | 493.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
