SDO HMI 2014-04-09 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.44 | 14.03 | 3.35 | 7.31 | -2.43 | 316.03 | -17.96 | 79.25 | 0.3151 | 373.4 | 250.4 | |
|
previous
or next observation for the same group /

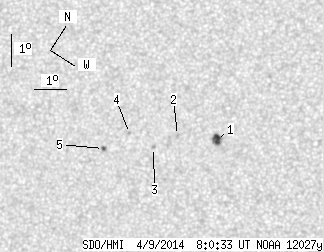

back to the solar disc SDO HMI 2014-04-09 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.73 | 7.94 | 2.98 | 4.12 | -1.88 | 316.89 | -17.09 | 76.99 | 0.3029 | 1047.8 | 720.4 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -2.39 | 315.79 | -18.19 | 79.41 | 0.3188 | 847.0 | 580.3 | |
| 0.00 | 1.68 | 0.00 | 0.88 | -3.08 | 315.36 | -18.63 | 81.78 | 0.3237 | 809.0 | 639.5 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -3.10 | 314.48 | -19.51 | 82.28 | 0.3380 | -745.0 | -622.8 | |
| 0.71 | 1.76 | 0.37 | 0.93 | -3.89 | 314.03 | -19.95 | 84.78 | 0.3434 | -940.6 | -845.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
