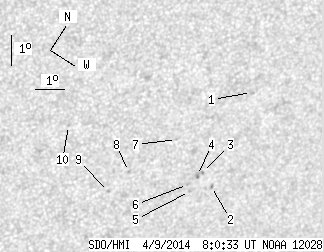

SDO HMI 2014-04-09 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.98 | 0.00 | 7.42 | -8.23 | 10.96 | 36.98 | 264.27 | 0.6006 | 682.0 | 574.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.88 | -5.22 | 11.44 | 37.46 | 269.30 | 0.6080 | 661.0 | 544.6 | |
| 0.00 | 1.59 | 0.00 | 1.00 | -8.18 | 12.44 | 38.46 | 264.43 | 0.6208 | 495.0 | 508.4 | |
| 0.00 | 1.32 | 0.00 | 0.83 | -8.02 | 11.83 | 37.85 | 264.68 | 0.6124 | 772.0 | 639.6 | |
| 0.00 | 1.76 | 0.00 | 1.10 | -8.19 | 11.75 | 37.77 | 264.41 | 0.6114 | 946.0 | 735.4 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -8.71 | 11.90 | 37.92 | 263.55 | 0.6135 | 745.0 | 620.1 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -8.58 | 11.67 | 37.69 | 263.75 | 0.6104 | 740.0 | 604.0 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -7.73 | 10.28 | 36.30 | 265.15 | 0.5909 | 667.0 | 534.8 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -9.37 | 9.63 | 35.64 | 262.31 | 0.5823 | 616.0 | 522.3 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -10.22 | 9.52 | 35.54 | 260.84 | 0.5816 | 605.0 | 447.3 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -9.38 | 6.84 | 32.86 | 262.02 | 0.5426 | 573.0 | 498.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
