SDO HMI 2014-04-09 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.14 | 13.93 | 4.21 | 14.02 | 17.82 | 30.35 | 56.37 | 294.44 | 0.8724 | -327.4 | -348.9 | |
|
previous
or next observation for the same group /

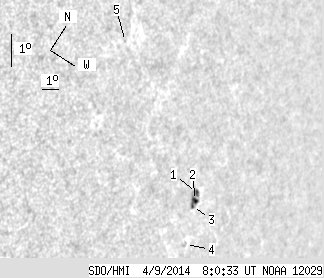

back to the solar disc SDO HMI 2014-04-09 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.59 | 11.73 | 1.61 | 11.89 | 18.04 | 30.59 | 56.61 | 294.57 | 0.8749 | -508.3 | -420.6 | |
| 2.29 | -1.00 | 2.33 | -1.00 | 17.81 | 30.69 | 56.71 | 294.29 | 0.8751 | -492.1 | 999999 | |
| 0.26 | -1.00 | 0.27 | -1.00 | 17.59 | 30.63 | 56.65 | 294.07 | 0.8740 | -424.0 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.43 | 16.48 | 30.99 | 57.00 | 292.73 | 0.8740 | -369.0 | -314.6 | |
| 0.00 | 0.79 | 0.00 | 0.70 | 20.28 | 24.00 | 50.01 | 299.59 | 0.8286 | 512.0 | 368.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
