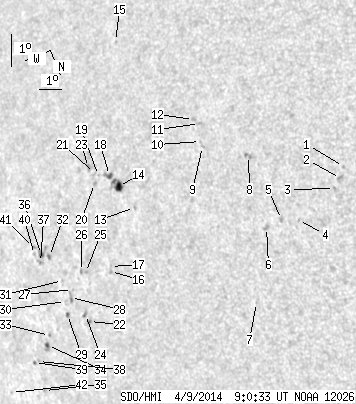

SDO HMI 2014-04-09 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.64 | 89.68 | 9.08 | 68.24 | -10.91 | 22.97 | 49.53 | 260.67 | 0.7575 | -2.4 | 42.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.68 | -11.04 | 12.69 | 39.25 | 259.90 | 0.6331 | -735.0 | -634.2 | |
| 0.00 | 3.79 | 0.00 | 2.43 | -10.73 | 12.93 | 39.49 | 260.42 | 0.6360 | -747.0 | -609.3 | |
| 0.00 | 1.68 | 0.00 | 1.08 | -10.49 | 13.27 | 39.83 | 260.82 | 0.6403 | -717.0 | -441.5 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -9.90 | 15.01 | 41.58 | 261.86 | 0.6627 | -533.0 | -482.0 | |
| 0.00 | 2.20 | 0.00 | 1.47 | -10.08 | 15.67 | 42.24 | 261.62 | 0.6713 | -585.0 | -535.4 | |
| 0.00 | 2.91 | 0.00 | 1.96 | -9.98 | 16.36 | 42.92 | 261.80 | 0.6799 | -762.0 | -567.5 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -7.91 | 17.65 | 44.21 | 264.85 | 0.6958 | -564.0 | -446.4 | |
| 0.00 | 3.17 | 0.00 | 2.14 | -12.21 | 16.31 | 42.87 | 258.51 | 0.6808 | -933.0 | -725.7 | |
| 0.00 | 1.59 | 0.00 | 1.10 | -12.87 | 18.12 | 44.68 | 257.76 | 0.7037 | -656.0 | -511.7 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -13.04 | 18.15 | 44.71 | 257.53 | 0.7043 | -487.0 | -478.3 | |
| 0.00 | 1.15 | 0.00 | 0.80 | -13.56 | 18.01 | 44.58 | 256.76 | 0.7032 | -822.0 | -697.1 | |
| 0.00 | 2.20 | 0.00 | 1.54 | -13.73 | 18.23 | 44.79 | 256.55 | 0.7060 | -518.0 | -442.7 | |
| 0.00 | 1.15 | 0.00 | 0.85 | -11.68 | 21.71 | 48.27 | 259.69 | 0.7451 | 605.0 | 429.8 | |
| 4.94 | 12.08 | 3.69 | 9.04 | -12.42 | 22.20 | 48.76 | 258.73 | 0.7511 | -800.6 | -465.4 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -16.66 | 20.96 | 47.52 | 252.92 | 0.7415 | 629.0 | 512.0 | |
| 0.00 | 1.50 | 0.00 | 1.15 | -10.02 | 23.54 | 50.10 | 261.96 | 0.7652 | -653.0 | -556.6 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -10.17 | 23.48 | 50.04 | 261.77 | 0.7646 | -646.0 | -485.9 | |
| 1.68 | 4.32 | 1.26 | 3.25 | -12.82 | 22.49 | 49.06 | 258.23 | 0.7547 | -612.5 | -422.7 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -12.91 | 23.00 | 49.56 | 258.15 | 0.7603 | -375.0 | -289.4 | |
| 0.00 | 1.59 | 0.00 | 1.21 | -12.71 | 23.27 | 49.83 | 258.43 | 0.7632 | 225.0 | 200.9 | |
| 0.00 | 1.32 | 0.00 | 1.01 | -13.00 | 23.17 | 49.73 | 258.04 | 0.7622 | -146.0 | -42.3 | |
| 0.44 | 1.59 | 0.35 | 1.26 | -8.74 | 25.15 | 51.71 | 263.62 | 0.7829 | 694.0 | 603.4 | |
| 0.00 | 3.09 | 0.00 | 2.36 | -13.22 | 23.38 | 49.94 | 257.77 | 0.7648 | 438.0 | 228.1 | |
| 0.00 | 2.73 | 0.00 | 2.17 | -8.97 | 25.24 | 51.80 | 263.32 | 0.7839 | 791.0 | 583.4 | |
| 0.00 | 1.41 | 0.00 | 1.11 | -10.19 | 24.71 | 51.27 | 261.75 | 0.7781 | 724.0 | 600.9 | |
| 0.00 | 2.03 | 0.00 | 1.60 | -10.25 | 24.89 | 51.45 | 261.68 | 0.7800 | 642.0 | 559.2 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -9.80 | 25.54 | 52.10 | 262.26 | 0.7870 | 598.0 | 561.2 | |
| 0.00 | 3.70 | 0.00 | 2.97 | -9.58 | 25.74 | 52.30 | 262.53 | 0.7891 | 717.0 | 575.0 | |
| 0.79 | 1.94 | 0.64 | 1.57 | -9.11 | 26.10 | 52.66 | 263.13 | 0.7930 | 591.1 | 472.8 | |
| 0.00 | 1.15 | 0.00 | 0.93 | -9.51 | 26.03 | 52.59 | 262.63 | 0.7922 | 495.0 | 431.9 | |
| 0.00 | 0.79 | 0.00 | 0.64 | -10.14 | 25.90 | 52.47 | 261.83 | 0.7909 | 467.0 | 400.9 | |
| 0.62 | 2.03 | 0.50 | 1.65 | -10.94 | 26.24 | 52.80 | 260.82 | 0.7945 | 824.4 | 683.2 | |
| 0.00 | 0.88 | 0.00 | 0.73 | -8.64 | 27.26 | 53.83 | 263.70 | 0.8051 | 469.0 | 463.8 | |
| 1.32 | 4.14 | 1.11 | 3.47 | -8.36 | 27.50 | 54.06 | 264.04 | 0.8076 | 563.5 | 362.0 | |
| 0.00 | 1.59 | 0.00 | 1.35 | -7.07 | 28.31 | 54.87 | 265.60 | 0.8162 | 489.0 | 366.6 | |
| 1.50 | 6.52 | 1.23 | 5.33 | -11.06 | 26.61 | 53.17 | 260.68 | 0.7983 | 787.4 | 594.2 | |
| 0.00 | 2.82 | 0.00 | 2.32 | -10.83 | 26.76 | 53.32 | 260.97 | 0.7998 | 623.0 | 432.1 | |
| 0.00 | 1.23 | 0.00 | 1.05 | -7.96 | 28.18 | 54.74 | 264.51 | 0.8146 | 598.0 | 449.7 | |
| 0.35 | 1.15 | 0.30 | 0.98 | -7.96 | 28.40 | 54.96 | 264.51 | 0.8168 | 377.0 | 346.7 | |
| 0.00 | 1.32 | 0.00 | 1.09 | -11.11 | 26.96 | 53.52 | 260.62 | 0.8019 | 399.0 | 275.3 | |
| 0.00 | 1.23 | 0.00 | 1.02 | -11.32 | 26.92 | 53.49 | 260.36 | 0.8016 | 534.0 | 447.8 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -7.25 | 30.03 | 56.59 | 265.30 | 0.8331 | 244.0 | 195.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
