SDO HMI 2014-04-09 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.53 | 15.87 | 3.38 | 8.29 | -2.21 | 315.65 | -17.79 | 78.45 | 0.3145 | 154.7 | -78.7 | |
|
previous
or next observation for the same group /

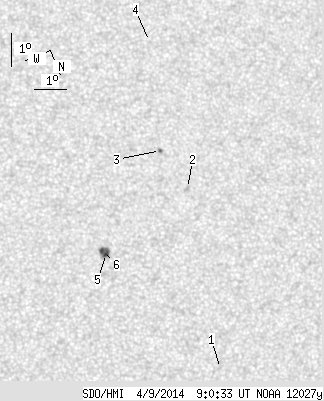

back to the solar disc SDO HMI 2014-04-09 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.61 | 2.81 | 314.99 | -18.45 | 64.87 | 0.3506 | 17.0 | -0.5 | |
| 0.00 | 2.82 | 0.00 | 1.49 | -2.55 | 313.77 | -19.67 | 80.80 | 0.3422 | -724.0 | -623.4 | |
| 0.71 | 1.76 | 0.37 | 0.93 | -3.93 | 314.07 | -19.37 | 84.70 | 0.3338 | -969.1 | -845.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -7.04 | 312.94 | -20.50 | 94.00 | 0.3499 | 6.0 | -0.2 | |
| 3.44 | 9.08 | 1.78 | 4.70 | -1.79 | 316.93 | -16.51 | 76.22 | 0.2937 | 993.8 | 598.8 | |
| 2.38 | -5.00 | 1.23 | -5.00 | -1.92 | 317.01 | -16.43 | 76.59 | 0.2919 | 1139.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
