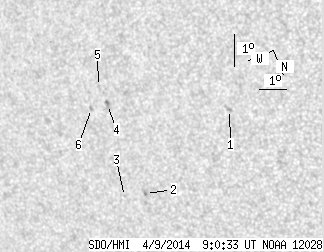

SDO HMI 2014-04-09 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.23 | 0.00 | 6.38 | -7.41 | 11.11 | 37.67 | 265.69 | 0.6100 | 435.8 | 381.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.03 | 0.00 | 1.21 | -6.85 | 7.52 | 34.08 | 266.69 | 0.5595 | -771.0 | -578.0 | |
| 0.00 | 1.50 | 0.00 | 0.94 | -5.24 | 11.51 | 38.07 | 269.22 | 0.6164 | 776.0 | 646.5 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -5.34 | 12.31 | 38.87 | 268.98 | 0.6272 | 471.0 | 426.0 | |
| 0.00 | 3.17 | 0.00 | 2.00 | -8.13 | 11.81 | 38.37 | 264.50 | 0.6197 | 938.0 | 747.1 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -8.73 | 11.94 | 38.50 | 263.54 | 0.6215 | 674.0 | 470.4 | |
| 0.00 | 1.94 | 0.00 | 1.23 | -8.16 | 12.45 | 39.01 | 264.46 | 0.6283 | 527.0 | 467.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
