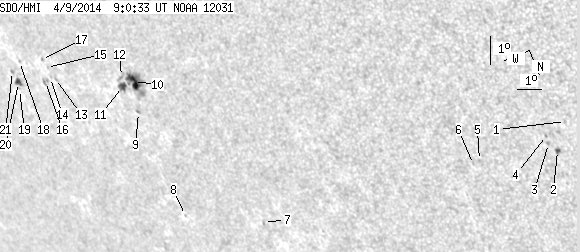

SDO HMI 2014-04-09 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.42 | 64.38 | 13.50 | 55.39 | 2.96 | 27.47 | 54.03 | 278.22 | 0.8162 | 167.5 | 148.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.80 | 7.46 | 11.20 | 37.77 | 289.20 | 0.6453 | 459.0 | 465.3 | |
| 0.79 | 2.82 | 0.52 | 1.85 | 8.24 | 12.00 | 38.57 | 289.94 | 0.6587 | 721.4 | 515.0 | |
| 0.00 | 1.50 | 0.00 | 0.99 | 7.95 | 12.19 | 38.75 | 289.43 | 0.6597 | 602.0 | 489.8 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 7.69 | 12.11 | 38.68 | 289.10 | 0.6577 | 563.0 | 616.2 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 7.81 | 14.97 | 41.53 | 287.97 | 0.6929 | 505.0 | 366.5 | |
| 0.00 | 0.44 | 0.00 | 0.30 | 7.87 | 15.26 | 41.83 | 287.93 | 0.6967 | 389.0 | 326.2 | |
| 0.00 | 1.06 | 0.00 | 0.87 | 7.79 | 24.85 | 51.41 | 284.46 | 0.8020 | 555.0 | 463.9 | |
| 0.00 | 0.53 | 0.00 | 0.47 | 6.96 | 28.22 | 54.79 | 282.56 | 0.8330 | -391.0 | -370.3 | |
| 0.00 | 1.50 | 0.00 | 1.30 | 3.48 | 27.97 | 54.53 | 278.48 | 0.8241 | -652.0 | -494.5 | |
| 8.46 | 35.45 | 7.25 | 30.43 | 2.51 | 27.52 | 54.09 | 277.41 | 0.8181 | 852.2 | 393.2 | |
| 3.44 | -10.00 | 2.99 | -10.00 | 2.58 | 28.16 | 54.72 | 277.37 | 0.8244 | 516.2 | 999999 | |
| 0.00 | 3.44 | 0.00 | 2.98 | 2.27 | 27.98 | 54.55 | 277.03 | 0.8223 | 493.0 | 348.3 | |
| 0.00 | 1.59 | 0.00 | 1.50 | 1.86 | 31.32 | 57.88 | 275.94 | 0.8532 | -612.0 | -503.6 | |
| 0.00 | 0.62 | 0.00 | 0.59 | 1.79 | 31.56 | 58.12 | 275.82 | 0.8552 | -489.0 | -486.9 | |
| 0.00 | 0.35 | 0.00 | 0.33 | 1.46 | 31.54 | 58.10 | 275.45 | 0.8546 | -631.0 | -642.2 | |
| 0.00 | 3.79 | 0.00 | 3.64 | 1.88 | 31.92 | 58.48 | 275.86 | 0.8585 | -603.0 | -409.2 | |
| 0.00 | 0.62 | 0.00 | 0.59 | 1.19 | 31.61 | 58.18 | 275.11 | 0.8550 | -594.0 | -526.7 | |
| 0.00 | 0.97 | 0.00 | 0.95 | 1.10 | 32.84 | 59.41 | 274.82 | 0.8657 | -498.0 | -413.5 | |
| 0.00 | 0.44 | 0.00 | 0.44 | 1.95 | 33.53 | 60.09 | 275.68 | 0.8726 | -277.0 | -263.0 | |
| 2.73 | 4.59 | 2.74 | 4.59 | 1.73 | 33.41 | 59.97 | 275.45 | 0.8713 | -529.3 | -375.5 | |
| 0.00 | 1.41 | 0.00 | 1.42 | 1.36 | 33.47 | 60.03 | 275.02 | 0.8714 | -356.0 | -261.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
