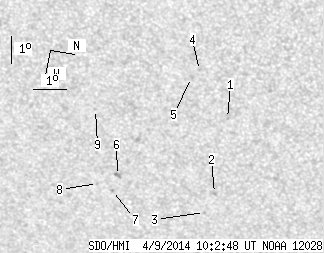

SDO HMI 2014-04-09 10:02:48 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.81 | 0.00 | 7.39 | -7.21 | 10.65 | 37.78 | 266.02 | 0.6115 | 381.7 | 389.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 10:02:48 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.54 | -5.43 | 8.66 | 35.79 | 269.09 | 0.5844 | 584.0 | 534.6 | |
| 0.00 | 1.32 | 0.00 | 0.84 | -5.19 | 11.53 | 38.66 | 269.23 | 0.6245 | 802.0 | 676.3 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -5.32 | 12.34 | 39.47 | 268.96 | 0.6353 | 546.0 | 388.5 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -6.62 | 7.20 | 34.33 | 267.08 | 0.5632 | -703.0 | -509.1 | |
| 0.00 | 1.68 | 0.00 | 1.01 | -6.80 | 7.53 | 34.66 | 266.76 | 0.5678 | -681.0 | -478.0 | |
| 0.00 | 2.91 | 0.00 | 1.85 | -8.14 | 11.85 | 38.98 | 264.49 | 0.6279 | 933.0 | 776.6 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -8.16 | 12.47 | 39.60 | 264.47 | 0.6362 | 673.0 | 560.2 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -8.65 | 12.38 | 39.51 | 263.69 | 0.6350 | 525.0 | 463.4 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -9.32 | 9.66 | 36.79 | 262.48 | 0.5983 | 756.0 | 571.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
