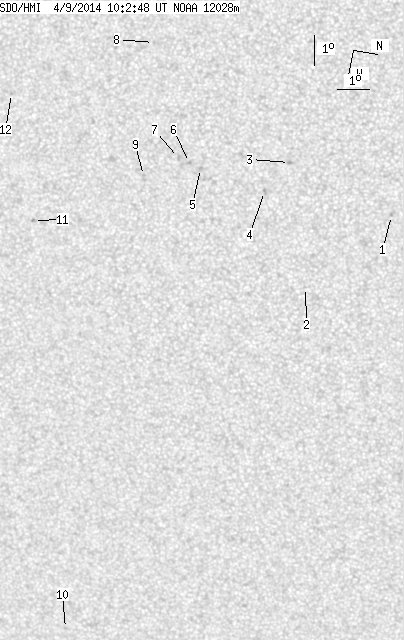

SDO HMI 2014-04-09 10:02:48 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.84 | 0.00 | 8.94 | -16.38 | 351.04 | 18.17 | 238.01 | 0.3555 | -674.2 | -565.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 10:02:48 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.51 | 349.52 | 16.65 | 253.68 | 0.2948 | -867.0 | -691.5 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -12.54 | 352.47 | 19.60 | 249.97 | 0.3500 | 0.0 | -1.5 | |
| 0.00 | 2.12 | 0.00 | 1.10 | -13.87 | 348.70 | 15.83 | 242.09 | 0.3010 | -951.0 | -794.9 | |
| 0.00 | 1.85 | 0.00 | 0.97 | -14.41 | 349.81 | 16.94 | 241.98 | 0.3211 | -955.0 | -733.9 | |
| 0.00 | 2.20 | 0.00 | 1.16 | -16.46 | 349.65 | 16.78 | 236.19 | 0.3347 | -907.0 | -635.0 | |
| 0.00 | 1.76 | 0.00 | 0.93 | -16.83 | 349.56 | 16.69 | 235.12 | 0.3366 | -918.0 | -693.7 | |
| 0.00 | 2.12 | 0.00 | 1.11 | -17.19 | 349.51 | 16.64 | 234.12 | 0.3390 | -791.0 | -676.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -18.72 | 346.11 | 13.24 | 224.29 | 0.3120 | -801.0 | -564.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -18.11 | 350.40 | 17.53 | 233.22 | 0.3590 | -929.0 | -677.4 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -17.07 | 6.35 | 33.48 | 248.46 | 0.5692 | 678.0 | 475.4 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -21.10 | 352.97 | 20.10 | 230.32 | 0.4184 | -818.0 | -712.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -22.67 | 349.08 | 16.21 | 221.59 | 0.3897 | -832.0 | -685.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
