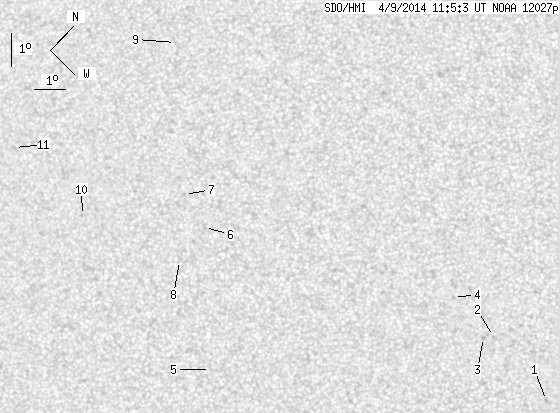

SDO HMI 2014-04-09 11:05:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.33 | 0.00 | 6.48 | -20.90 | 321.58 | -10.72 | 149.85 | 0.3201 | 44.2 | -11.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 11:05:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.71 | -17.85 | 331.75 | -0.55 | 177.46 | 0.2061 | 839.0 | 709.1 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -17.60 | 329.15 | -3.15 | 165.37 | 0.2085 | 869.0 | 643.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -17.84 | 328.94 | -3.36 | 164.78 | 0.2133 | 825.0 | 705.4 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -17.61 | 327.39 | -4.92 | 157.90 | 0.2181 | 818.0 | 629.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -24.48 | 323.12 | -9.18 | 155.45 | 0.3510 | 11.0 | 0.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -21.40 | 319.90 | -12.40 | 143.21 | 0.3354 | -801.0 | -613.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -21.08 | 318.69 | -13.61 | 140.09 | 0.3438 | -719.0 | -520.0 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -22.68 | 319.97 | -12.33 | 145.70 | 0.3512 | 4.0 | -11.5 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -17.86 | 315.24 | -17.06 | 126.88 | 0.3506 | 3.0 | -0.8 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -23.75 | 316.47 | -15.83 | 140.98 | 0.3983 | -728.0 | -587.5 | |
| 0.00 | 1.85 | 0.00 | 1.02 | -23.65 | 313.18 | -19.12 | 135.75 | 0.4319 | -635.0 | -549.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
