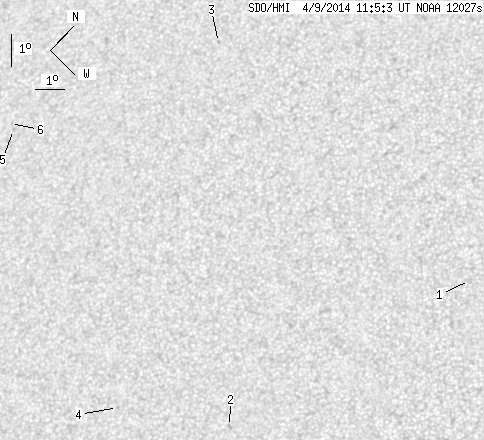

SDO HMI 2014-04-09 11:05:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.56 | 0.00 | 4.80 | -14.56 | 305.84 | -26.46 | 110.21 | 0.4623 | -103.8 | -19.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 11:05:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.17 | 0.00 | 1.68 | -10.64 | 312.14 | -20.16 | 104.37 | 0.3512 | 14.0 | 3.8 | |
| 0.00 | 1.68 | 0.00 | 0.92 | -18.83 | 309.04 | -23.26 | 121.58 | 0.4406 | 706.0 | 609.7 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -10.37 | 300.38 | -31.92 | 99.97 | 0.5302 | -723.0 | -592.5 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -20.72 | 305.45 | -26.85 | 122.03 | 0.5003 | 648.0 | 532.6 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -16.41 | 296.28 | -36.02 | 109.49 | 0.6006 | -727.0 | -590.5 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -16.34 | 296.05 | -36.25 | 109.28 | 0.6034 | -541.0 | -537.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
