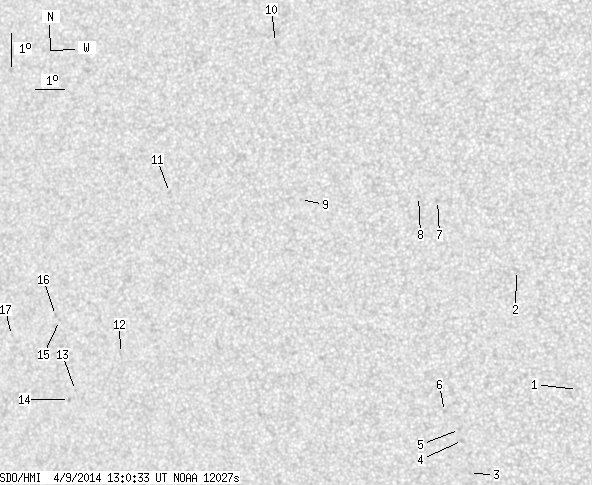

SDO HMI 2014-04-09 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.08 | 22.31 | 1.63 | 12.50 | -14.17 | 305.05 | -26.19 | 110.43 | 0.4583 | 79.0 | 54.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.79 | -16.92 | 313.59 | -17.66 | 123.74 | 0.3505 | 7.0 | 12.9 | |
| 3.08 | 3.35 | 1.63 | 1.77 | -13.24 | 311.92 | -19.32 | 112.21 | 0.3494 | 2.1 | -1.7 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -19.37 | 309.67 | -21.57 | 124.44 | 0.4224 | 673.0 | 565.9 | |
| 0.00 | 2.56 | 0.00 | 1.39 | -18.35 | 309.57 | -21.67 | 122.18 | 0.4159 | 678.0 | 411.0 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -18.00 | 309.52 | -21.73 | 121.38 | 0.4142 | 745.0 | 513.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -17.43 | 309.08 | -22.16 | 119.70 | 0.4161 | 755.0 | 595.1 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -11.03 | 309.51 | -21.73 | 104.61 | 0.3772 | 880.0 | 690.1 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -10.89 | 308.90 | -22.35 | 103.93 | 0.3864 | 704.0 | 521.4 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -10.81 | 304.94 | -26.30 | 102.21 | 0.4472 | 655.0 | 473.5 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -6.06 | 304.45 | -26.80 | 91.52 | 0.4503 | 600.0 | 500.3 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -10.37 | 300.42 | -30.82 | 100.17 | 0.5141 | -833.0 | -617.1 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -15.12 | 297.96 | -33.29 | 108.26 | 0.5601 | -504.0 | -482.6 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -16.14 | 296.06 | -35.19 | 109.33 | 0.5888 | -538.0 | -391.8 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -16.40 | 295.77 | -35.47 | 109.66 | 0.5934 | -601.0 | -523.2 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -13.99 | 295.86 | -35.38 | 105.66 | 0.5857 | -568.0 | -483.9 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -13.83 | 295.74 | -35.51 | 105.35 | 0.5870 | -702.0 | -556.6 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -14.33 | 293.95 | -37.30 | 105.73 | 0.6122 | -561.0 | -474.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
