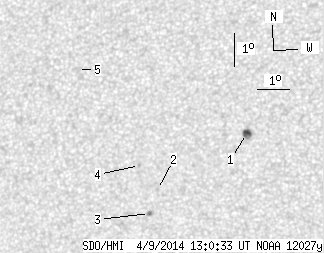

SDO HMI 2014-04-09 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.76 | 16.30 | 2.45 | 8.45 | -1.64 | 314.91 | -16.33 | 75.62 | 0.2921 | -122.6 | 18.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.05 | 7.40 | 2.08 | 3.79 | -1.70 | 317.20 | -14.05 | 73.43 | 0.2543 | 1047.7 | 817.7 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -3.30 | 314.40 | -16.85 | 81.56 | 0.2938 | -967.0 | -644.7 | |
| 0.71 | 2.20 | 0.37 | 1.14 | -4.01 | 314.13 | -17.11 | 84.09 | 0.2964 | -989.1 | -723.9 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -2.56 | 313.84 | -17.40 | 79.47 | 0.3052 | -652.0 | -564.3 | |
| 0.00 | 4.23 | 0.00 | 2.24 | 0.40 | 311.90 | -19.34 | 72.27 | 0.3492 | 4.0 | 18.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
