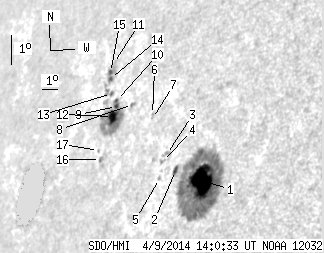

SDO HMI 2014-04-09 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.57 | 323.27 | 58.82 | 319.47 | 12.14 | 273.29 | -57.41 | 72.21 | 0.8658 | -321.0 | -70.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.01 | 238.48 | 40.06 | 222.65 | 11.30 | 275.18 | -55.52 | 72.61 | 0.8491 | -739.2 | -184.6 | |
| 2.47 | -1.00 | 2.41 | -1.00 | 11.76 | 273.59 | -57.10 | 72.55 | 0.8637 | -327.9 | 999999 | |
| 0.00 | 4.23 | 0.00 | 4.23 | 12.33 | 272.89 | -57.81 | 72.11 | 0.8708 | -490.0 | -321.4 | |
| 0.00 | 1.94 | 0.00 | 1.95 | 12.12 | 272.72 | -57.97 | 72.38 | 0.8717 | -242.0 | -205.1 | |
| 0.00 | 1.50 | 0.00 | 1.50 | 11.59 | 272.73 | -57.97 | 72.98 | 0.8705 | -341.0 | -291.6 | |
| 0.00 | 0.71 | 0.00 | 0.74 | 13.71 | 271.53 | -59.17 | 70.96 | 0.8844 | -282.0 | -222.9 | |
| 0.00 | 0.26 | 0.00 | 0.28 | 13.58 | 271.58 | -59.11 | 71.09 | 0.8837 | -145.0 | -209.3 | |
| 0.00 | 2.12 | 0.00 | 2.34 | 14.16 | 270.09 | -60.61 | 70.86 | 0.8961 | 621.0 | 467.0 | |
| 1.67 | 54.64 | 1.92 | 62.82 | 14.20 | 269.04 | -61.66 | 71.10 | 0.9037 | 583.7 | 201.8 | |
| 0.79 | -9.00 | 0.91 | -9.00 | 14.40 | 268.94 | -61.75 | 70.91 | 0.9047 | 445.2 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.63 | 15.65 | 268.10 | -62.60 | 69.78 | 0.9127 | 275.0 | 254.0 | |
| 7.84 | -9.00 | 9.01 | -9.00 | 13.89 | 268.92 | -61.78 | 71.46 | 0.9040 | 523.9 | 999999 | |
| 0.88 | 6.17 | 1.03 | 7.32 | 14.66 | 268.48 | -62.22 | 70.74 | 0.9084 | 499.4 | 284.0 | |
| 1.41 | 9.43 | 1.68 | 11.27 | 15.17 | 268.15 | -62.55 | 70.28 | 0.9115 | 637.2 | 418.9 | |
| 1.50 | -14.00 | 1.80 | -14.00 | 15.37 | 268.04 | -62.65 | 70.10 | 0.9126 | 510.4 | 999999 | |
| 0.00 | 2.38 | 0.00 | 2.72 | 12.56 | 268.71 | -61.98 | 72.94 | 0.9031 | 398.0 | 303.8 | |
| 0.00 | 0.88 | 0.00 | 1.02 | 12.87 | 268.45 | -62.25 | 72.68 | 0.9055 | 90.0 | 0.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
